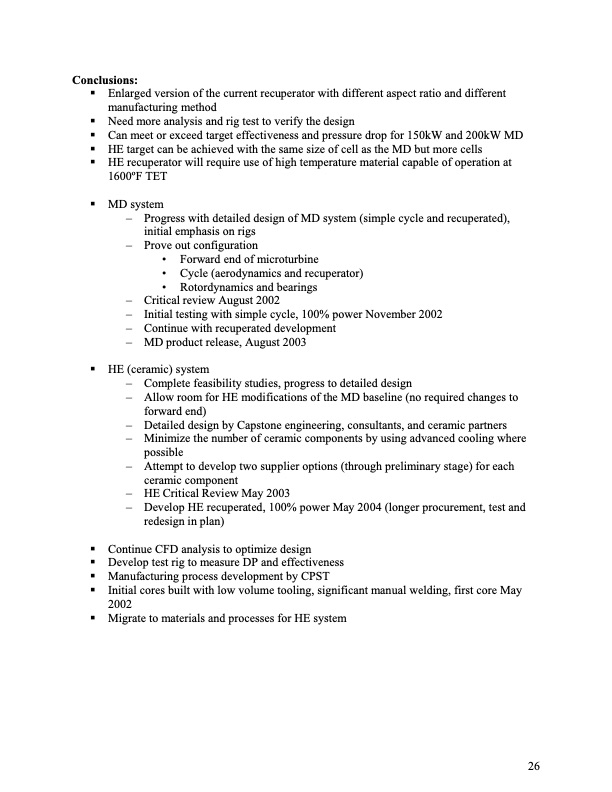

Conclusions: Enlarged version of the current recuperator with different aspect ratio and different manufacturing method Need more analysis and rig test to verify the design Can meet or exceed target effectiveness and pressure drop for 150kW and 200kW MD HE target can be achieved with the same size of cell as the MD but more cells HE recuperator will require use of high temperature material capable of operation at 1600oF TET MD system – Progress with detailed design of MD system (simple cycle and recuperated), initial emphasis on rigs – Prove out configuration • Forward end of microturbine • Cycle (aerodynamics and recuperator) • Rotordynamics and bearings – Critical review August 2002 – Initial testing with simple cycle, 100% power November 2002 – Continue with recuperated development – MD product release, August 2003 HE (ceramic) system – Complete feasibility studies, progress to detailed design – Allow room for HE modifications of the MD baseline (no required changes to forward end) – Detailed design by Capstone engineering, consultants, and ceramic partners – Minimize the number of ceramic components by using advanced cooling where possible – Attempt to develop two supplier options (through preliminary stage) for each ceramic component – HE Critical Review May 2003 – Develop HE recuperated, 100% power May 2004 (longer procurement, test and redesign in plan) Continue CFD analysis to optimize design Develop test rig to measure DP and effectiveness Manufacturing process development by CPST Initial cores built with low volume tooling, significant manual welding, first core May 2002 Migrate to materials and processes for HE system 26PDF Image | Final Technical Report Advanced MicroTurbine System (AMTS) -C200 MicroTurbine -Ultra-Low Emissions MicroTurbine
