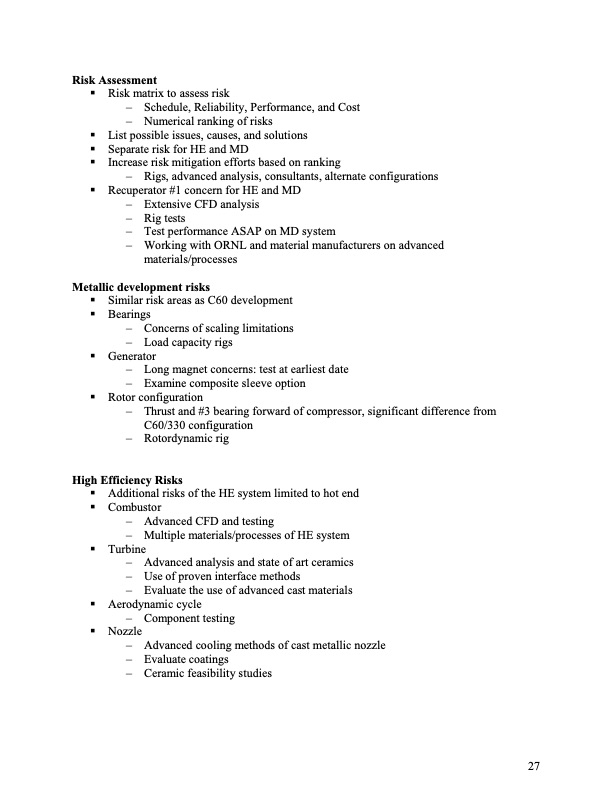

Risk Assessment Risk matrix to assess risk – Schedule, Reliability, Performance, and Cost – Numerical ranking of risks List possible issues, causes, and solutions Separate risk for HE and MD Increase risk mitigation efforts based on ranking – Rigs, advanced analysis, consultants, alternate configurations Recuperator #1 concern for HE and MD – Extensive CFD analysis – Rig tests – Test performance ASAP on MD system – Working with ORNL and material manufacturers on advanced materials/processes Metallic development risks Similar risk areas as C60 development Bearings – Concerns of scaling limitations – Load capacity rigs Generator – Long magnet concerns: test at earliest date – Examine composite sleeve option Rotor configuration – Thrust and #3 bearing forward of compressor, significant difference from C60/330 configuration – Rotordynamic rig High Efficiency Risks Additional risks of the HE system limited to hot end Combustor – Advanced CFD and testing – Multiple materials/processes of HE system Turbine – Advanced analysis and state of art ceramics – Use of proven interface methods – Evaluate the use of advanced cast materials Aerodynamic cycle – Component testing Nozzle – Advanced cooling methods of cast metallic nozzle – Evaluate coatings – Ceramic feasibility studies 27PDF Image | Final Technical Report Advanced MicroTurbine System (AMTS) -C200 MicroTurbine -Ultra-Low Emissions MicroTurbine
PDF Search Title:
Final Technical Report Advanced MicroTurbine System (AMTS) -C200 MicroTurbine -Ultra-Low Emissions MicroTurbineOriginal File Name Searched:
