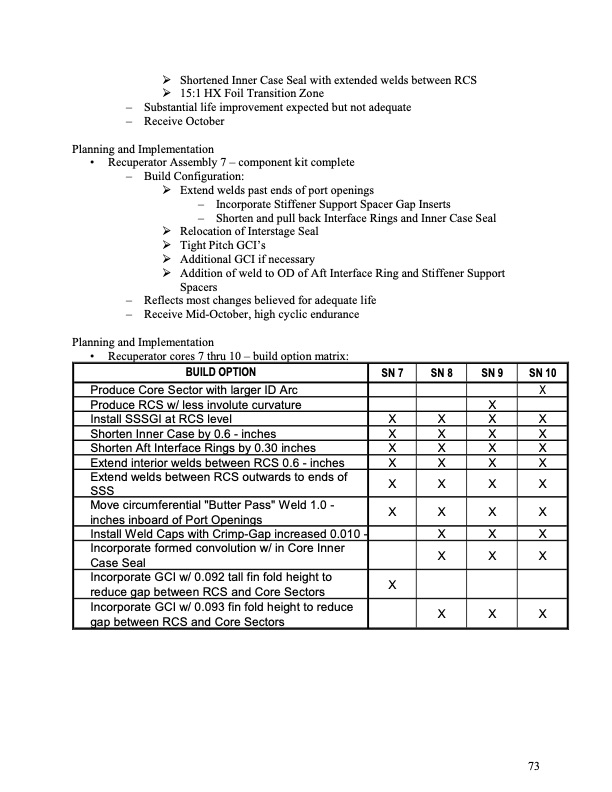

Shortened Inner Case Seal with extended welds between RCS 15:1 HX Foil Transition Zone – Substantial life improvement expected but not adequate – Receive October Planning and Implementation • Recuperator Assembly 7 – component kit complete – Build Configuration: Extend welds past ends of port openings – Incorporate Stiffener Support Spacer Gap Inserts – Shorten and pull back Interface Rings and Inner Case Seal Relocation of Interstage Seal Tight Pitch GCI’s Additional GCI if necessary Addition of weld to OD of Aft Interface Ring and Stiffener Support Spacers – Reflects most changes believed for adequate life – Receive Mid-October, high cyclic endurance Planning and Implementation • Recuperator cores 7 thru 10 – build option matrix: BUILD OPTION SN 7 SN 8 SN 9 SN 10 Produce Core Sector with larger ID Arc X Produce RCS w/ less involute curvature X Install SSSGI at RCS level XXXX Shorten Inner Case by 0.6 - inches XXXX Shorten Aft Interface Rings by 0.30 inches XXXX Extend interior welds between RCS 0.6 - inches XXXX Extend welds between RCS outwards to ends of SSS XXXX Move circumferential "Butter Pass" Weld 1.0 - inches inboard of Port Openings XXXX Install Weld Caps with Crimp-Gap increased 0.010 - X X X Incorporate formed convolution w/ in Core Inner Case Seal XXX Incorporate GCI w/ 0.092 tall fin fold height to reduce gap between RCS and Core Sectors X Incorporate GCI w/ 0.093 fin fold height to reduce gap between RCS and Core Sectors XXX 73PDF Image | Final Technical Report Advanced MicroTurbine System (AMTS) -C200 MicroTurbine -Ultra-Low Emissions MicroTurbine
