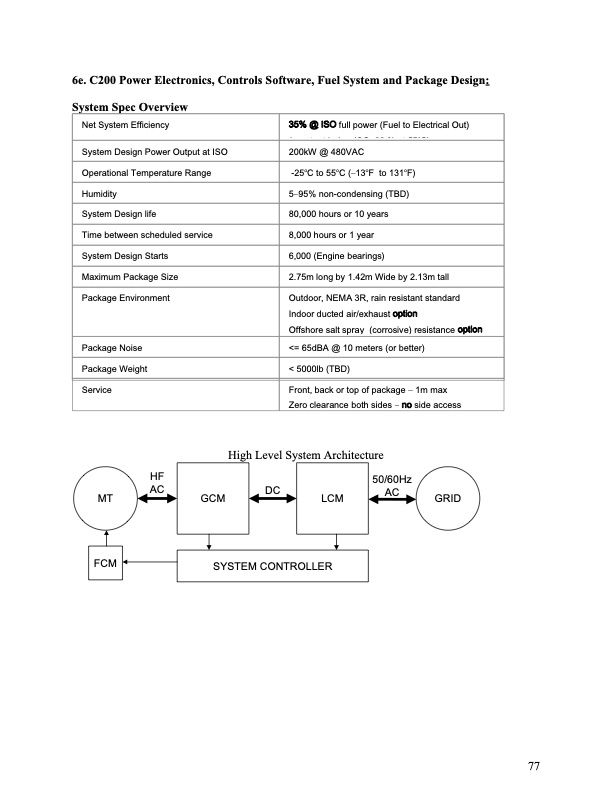

6e. C200 Power Electronics, Controls Software, Fuel System and Package Design: System Spec Overview Net System Efficiency 35% @ ISO full power (Fuel to Electrical Out) ( ttblISO33%t55°C) 200kW @ 480VAC System Design Power Output at ISO Operational Temperature Range -25°C to 55°C (–13°F to 131°F) Humidity 5–95% non-condensing (TBD) System Design life 80,000 hours or 10 years Time between scheduled service 8,000 hours or 1 year System Design Starts 6,000 (Engine bearings) Maximum Package Size 2.75m long by 1.42m Wide by 2.13m tall Package Environment Outdoor, NEMA 3R, rain resistant standard Indoor ducted air/exhaust option Offshore salt spray (corrosive) resistance option Package Noise <= 65dBA @ 10 meters (or better) Package Weight < 5000lb (TBD) Service Front, back or top of package – 1m max Zero clearance both sides – no side access High Level System Architecture HF 50/60Hz MT AC DC AC GRID SYSTEM CONTROLLER GCM LCM FCM 77PDF Image | Final Technical Report Advanced MicroTurbine System (AMTS) -C200 MicroTurbine -Ultra-Low Emissions MicroTurbine
