Text from PDF Page: 080

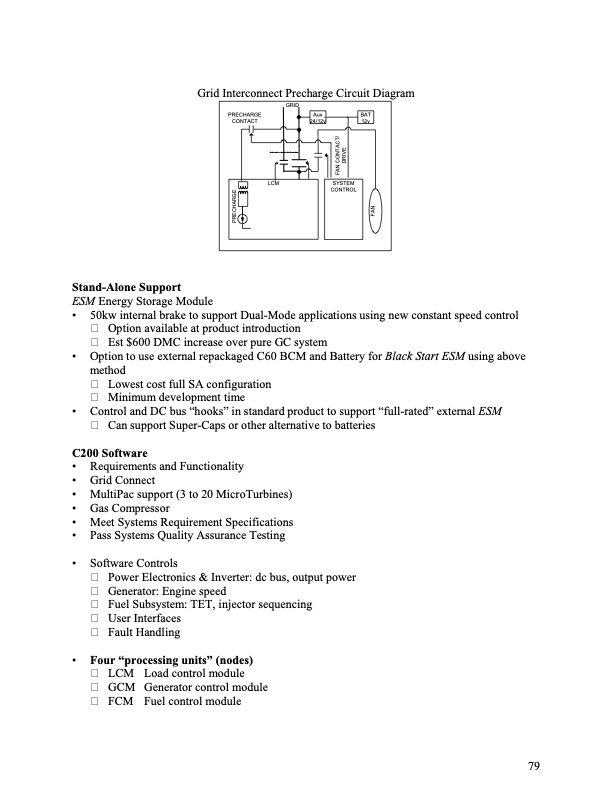

Grid Interconnect Precharge Circuit Diagram GRID PRECHARGE CONTACT BAT 12v LCM Aux 24/12v SYSTEM CONTROL Stand-Alone Support ESM Energy Storage Module • 50kw internal brake to support Dual-Mode applications using new constant speed control Option available at product introduction Est $600 DMC increase over pure GC system • Option to use external repackaged C60 BCM and Battery for Black Start ESM using above method Lowest cost full SA configuration Minimum development time • Control and DC bus “hooks” in standard product to support “full-rated” external ESM Can support Super-Caps or other alternative to batteries C200 Software • Requirements and Functionality • Grid Connect • MultiPac support (3 to 20 MicroTurbines) • Gas Compressor • Meet Systems Requirement Specifications • Pass Systems Quality Assurance Testing • Software Controls Power Electronics & Inverter: dc bus, output power Generator: Engine speed Fuel Subsystem: TET, injector sequencing User Interfaces Fault Handling • Four “processing units” (nodes) LCM GCM FCM Load control module Generator control module Fuel control module 79 PRECHARGE FAN FAN CONTACT/ DRIVEPDF Image | Final Technical Report Advanced MicroTurbine System (AMTS) -C200 MicroTurbine -Ultra-Low Emissions MicroTurbine
PDF Search Title:
Final Technical Report Advanced MicroTurbine System (AMTS) -C200 MicroTurbine -Ultra-Low Emissions MicroTurbineOriginal File Name Searched:
