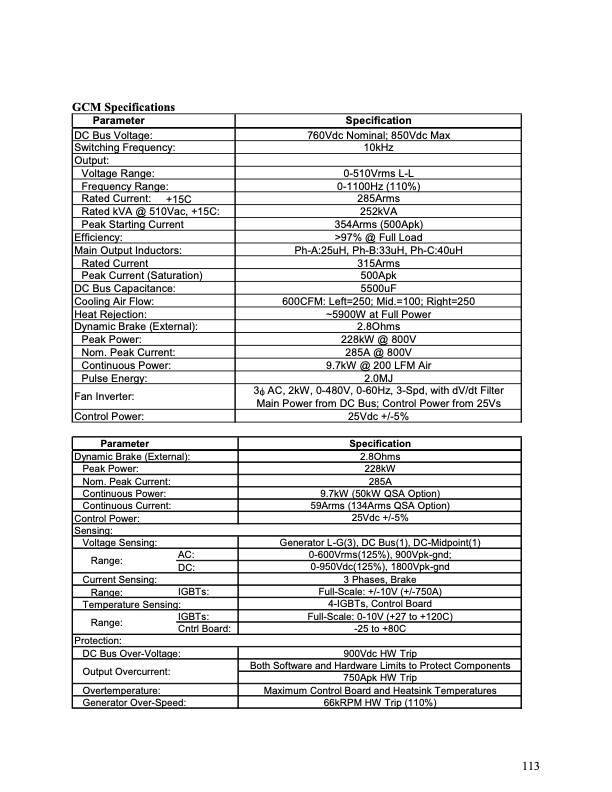

GCM Specifications Parameter Specification DC Bus Voltage: 760Vdc Nominal; 850Vdc Max Switching Frequency: 10kHz Output: Voltage Range: 0-510Vrms L-L Frequency Range: 0-1100Hz (110%) Rated Current: +15C 285Arms Rated kVA @ 510Vac, +15C: 252kVA Peak Starting Current 354Arms (500Apk) Efficiency: >97% @ Full Load Main Output Inductors: Ph-A:25uH, Ph-B:33uH, Ph-C:40uH Rated Current 315Arms Peak Current (Saturation) 500Apk DC Bus Capacitance: 5500uF Cooling Air Flow: 600CFM: Left=250; Mid.=100; Right=250 Heat Rejection: ~5900W at Full Power Dynamic Brake (External): 2.8Ohms Peak Power: 228kW @ 800V Nom. Peak Current: 285A @ 800V Continuous Power: 9.7kW @ 200 LFM Air Pulse Energy: 2.0MJ Fan Inverter: 3φ AC, 2kW, 0-480V, 0-60Hz, 3-Spd, with dV/dt Filter Main Power from DC Bus; Control Power from 25Vs Control Power: 25Vdc +/-5% Parameter Specification Dynamic Brake (External): 2.8Ohms Peak Power: 228kW Nom. Peak Current: 285A Continuous Power: 9.7kW (50kW QSA Option) Continuous Current: 59Arms (134Arms QSA Option) Control Power: 25Vdc +/-5% Sensing: Voltage Sensing: Generator L-G(3), DC Bus(1), DC-Midpoint(1) Range: AC: DC: 0-600Vrms(125%), 900Vpk-gnd; 0-950Vdc(125%), 1800Vpk-gnd Current Sensing: 3 Phases, Brake Range: IGBT s: Full-Scale: +/-10V (+/-750A) Temperature Sensing: 4-IGBTs, Control Board Range: IGBT s: Cntrl Board: Full-Scale: 0-10V (+27 to +120C) -25 to +80C Protection: DC Bus Over-Voltage: 900Vdc HW Trip Output Overcurrent: Both Software and Hardware Limits to Protect Components 750Apk HW Trip Overtemperature: Maximum Control Board and Heatsink Temperatures Generator Over-Speed: 66kRPM HW Trip (110%) 113PDF Image | Final Technical Report Advanced MicroTurbine System (AMTS) -C200 MicroTurbine -Ultra-Low Emissions MicroTurbine
