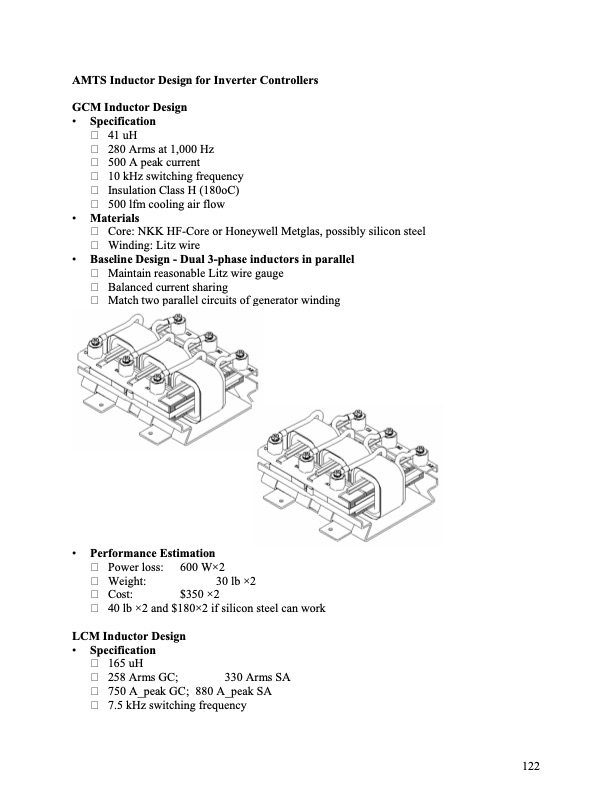

AMTS Inductor Design for Inverter Controllers GCM Inductor Design • Specification 41uH 280 Arms at 1,000 Hz 500 A peak current 10 kHz switching frequency Insulation Class H (180oC) 500 lfm cooling air flow • Materials Core: NKK HF-Core or Honeywell Metglas, possibly silicon steel Winding: Litz wire • Baseline Design - Dual 3-phase inductors in parallel Maintain reasonable Litz wire gauge Balanced current sharing Match two parallel circuits of generator winding • Performance Estimation Power loss: Weight: Cost: 40 lb ×2 and $180×2 if silicon steel can work LCM Inductor Design • Specification 165uH 258 Arms GC; 330 Arms SA 750 A_peak GC; 880 A_peak SA 7.5 kHz switching frequency 600 W×2 30 lb ×2 $350 ×2 122PDF Image | Final Technical Report Advanced MicroTurbine System (AMTS) -C200 MicroTurbine -Ultra-Low Emissions MicroTurbine
