PDF Publication Title:
Text from PDF Page: 137

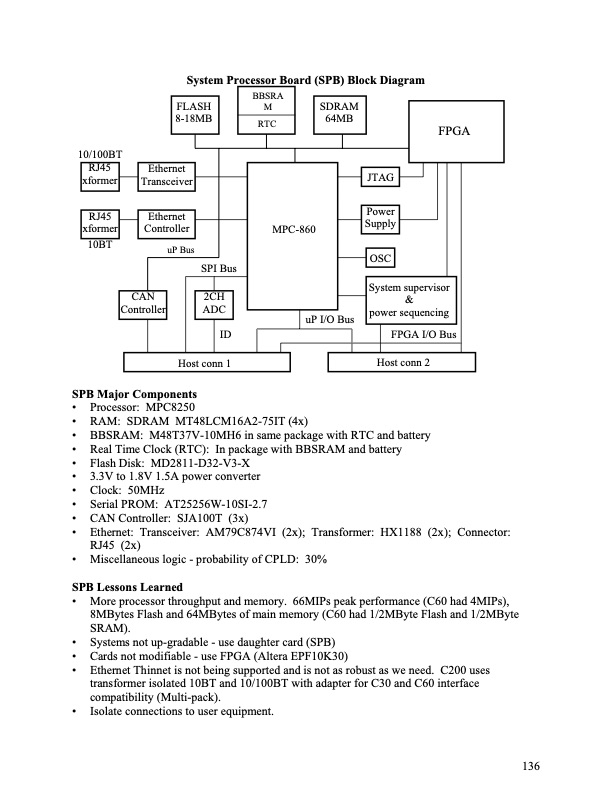

10/100BT 10BT uP Bus System Processor Board (SPB) Block Diagram RJ45 xformer BBSRA M 32 8 RTC Ethernet Transceiver FLASH 8-18MB SDRAM 64MB FPGA RJ45 xformer CAN Controller Ethernet Controller SPI Bus MPC-860 JTAG Power Supply OSC 2CH ADC uP I/O Bus System supervisor & power sequencing ID FPGA I/O Bus Host conn 1 Host conn 2 SPB Major Components • Processor: MPC8250 • RAM: SDRAM MT48LCM16A2-75IT (4x) • BBSRAM: M48T37V-10MH6 in same package with RTC and battery • Real Time Clock (RTC): In package with BBSRAM and battery • Flash Disk: MD2811-D32-V3-X • 3.3V to 1.8V 1.5A power converter • Clock: 50MHz • Serial PROM: A T25256W-10SI-2.7 • CAN Controller: SJA100T (3x) • Ethernet: Transceiver: AM79C874VI (2x); Transformer: HX1188 (2x); Connector: RJ45 (2x) • Miscellaneous logic - probability of CPLD: 30% SPB Lessons Learned • More processor throughput and memory. 66MIPs peak performance (C60 had 4MIPs), 8MBytes Flash and 64MBytes of main memory (C60 had 1/2MByte Flash and 1/2MByte SRAM). • Systems not up-gradable - use daughter card (SPB) • Cards not modifiable - use FPGA (Altera EPF10K30) • Ethernet Thinnet is not being supported and is not as robust as we need. C200 uses transformer isolated 10BT and 10/100BT with adapter for C30 and C60 interface compatibility (Multi-pack). • Isolate connections to user equipment. 136PDF Image | Final Technical Report Advanced MicroTurbine System (AMTS) -C200 MicroTurbine -Ultra-Low Emissions MicroTurbine
PDF Search Title:
Final Technical Report Advanced MicroTurbine System (AMTS) -C200 MicroTurbine -Ultra-Low Emissions MicroTurbineOriginal File Name Searched:
