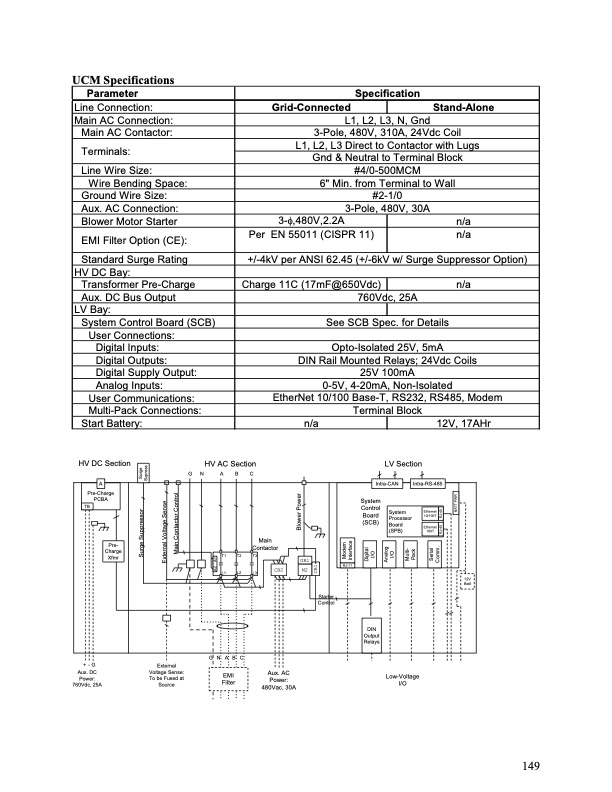

UCM Specifications Parameter Specification Line Connection: Grid-Connected Stand-Alone Main AC Connection: L1, L2, L3, N, Gnd Main AC Contactor: 3-Pole, 480V, 310A, 24Vdc Coil Terminals: L1, L2, L3 Direct to Contactor with Lugs Gnd & Neutral to Terminal Block Line Wire Size: #4/0-500MCM Wire Bending Space: 6" Min. from Terminal to Wall Ground Wire Size: #2-1/0 Aux. AC Connection: 3-Pole, 480V, 30A Blower Motor Starter 3-φ,480V,2.2A n/a EMI Filter Option (CE): Per EN 55011 (CISPR 11) n/a Standard Surge Rating +/-4kV per ANSI 62.45 (+/-6kV w/ Surge Suppressor Option) HV DC Bay: Transformer Pre-Charge Charge 11C (17mF@650Vdc) n/a Aux. DC Bus Output 760Vdc, 25A LV Bay: System Control Board (SCB) See SCB Spec. for Details User Connections: Digital Inputs: Opto-Isolated 25V, 5mA Digital Outputs: DIN Rail Mounted Relays; 24Vdc Coils Digital Supply Output: 25V 100mA Analog Inputs: 0-5V, 4-20mA, Non-Isolated User Communications: EtherNet 10/100 Base-T, RS232, RS485, Modem Multi-Pack Connections: Terminal Block Start Battery: n/a 12V, 17AHr HV DC Section HV AC Section GNABC Main Contactor CB2 Aux. AC Power: 480Vac, 30A LV Section A Pre-Charge PCBA TB Intra-CAN Intra-RS-485 System Processor Board (SPB) 100T Ethernet 10/100T Pre- Charge Xfmr Ethernet T3 L3 T1 L1 T2 L2 RJ-11 System Control Board (SCB) 12V Batt GN A B C Cont rol DIN Output Relays EMI Filter OR1 M2 Starter +-G Aux. DC Power: 760Vdc, 25A External Voltage Sense: To be Fused at Source Low-Voltage I/O 149 A2 A1 CB1 Surge Suppressor Surge Supress External Voltage Sense Main Contactor Control Modem Interface Digital I/O Analog I/O Multi- Pack Serial Comm. RJ-45 RJ-45 BATT PWR Blower PowerPDF Image | Final Technical Report Advanced MicroTurbine System (AMTS) -C200 MicroTurbine -Ultra-Low Emissions MicroTurbine
