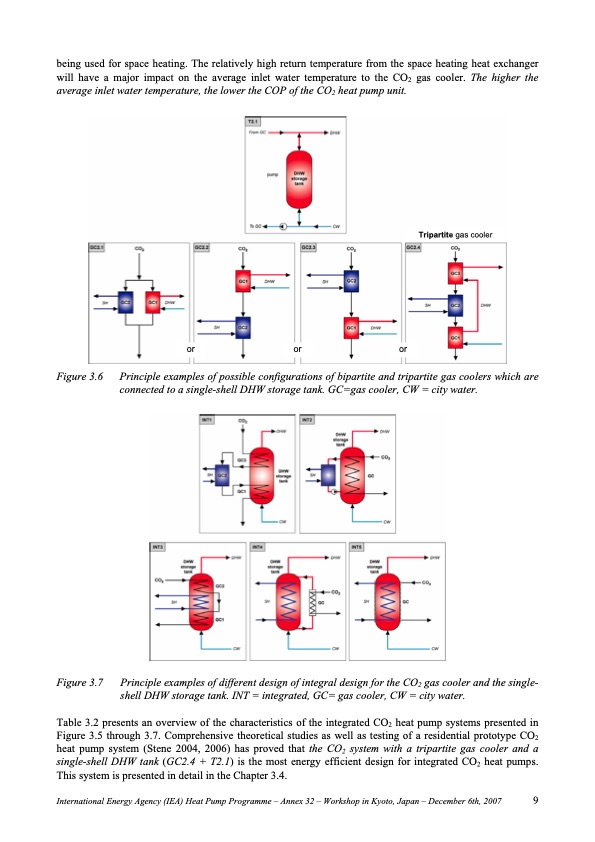

being used for space heating. The relatively high return temperature from the space heating heat exchanger will have a major impact on the average inlet water temperature to the CO2 gas cooler. The higher the average inlet water temperature, the lower the COP of the CO2 heat pump unit. Tripartite gas cooler Figure 3.6 Principle examples of possible configurations of bipartite and tripartite gas coolers which are connected to a single-shell DHW storage tank. GC=gas cooler, CW = city water. Principle examples of different design of integral design for the CO2 gas cooler and the single- shell DHW storage tank. INT = integrated, GC= gas cooler, CW = city water. or or or Figure 3.7 Table 3.2 presents an overview of the characteristics of the integrated CO2 heat pump systems presented in Figure 3.5 through 3.7. Comprehensive theoretical studies as well as testing of a residential prototype CO2 heat pump system (Stene 2004, 2006) has proved that the CO2 system with a tripartite gas cooler and a single-shell DHW tank (GC2.4 + T2.1) is the most energy efficient design for integrated CO2 heat pumps. This system is presented in detail in the Chapter 3.4. International Energy Agency (IEA) Heat Pump Programme – Annex 32 – Workshop in Kyoto, Japan – December 6th, 2007 9PDF Image | INTEGRATED CO2 HEAT PUMP SYSTEMS
