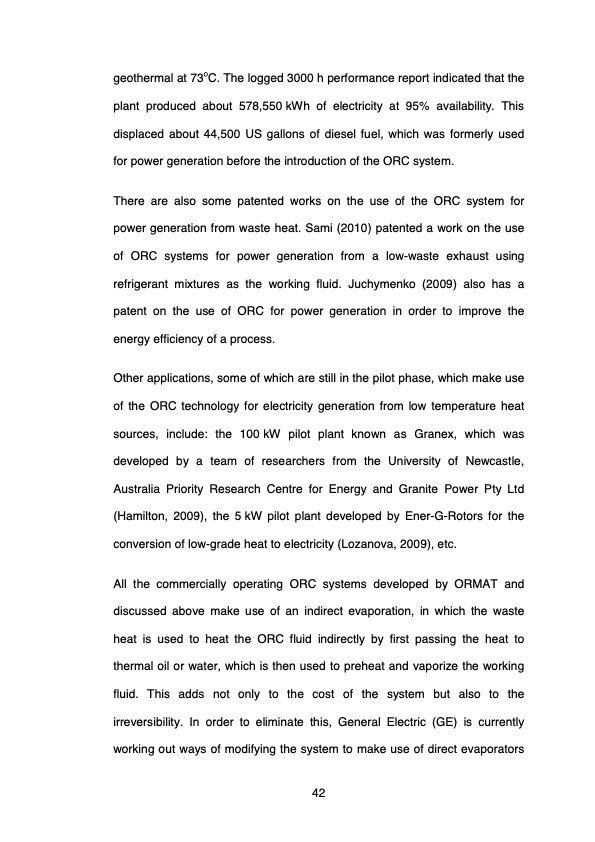

geothermal at 73oC. The logged 3000 h performance report indicated that the plant produced about 578,550 kWh of electricity at 95% availability. This displaced about 44,500 US gallons of diesel fuel, which was formerly used for power generation before the introduction of the ORC system. There are also some patented works on the use of the ORC system for power generation from waste heat. Sami (2010) patented a work on the use of ORC systems for power generation from a low-waste exhaust using refrigerant mixtures as the working fluid. Juchymenko (2009) also has a patent on the use of ORC for power generation in order to improve the energy efficiency of a process. Other applications, some of which are still in the pilot phase, which make use of the ORC technology for electricity generation from low temperature heat sources, include: the 100 kW pilot plant known as Granex, which was developed by a team of researchers from the University of Newcastle, Australia Priority Research Centre for Energy and Granite Power Pty Ltd (Hamilton, 2009), the 5 kW pilot plant developed by Ener-G-Rotors for the conversion of low-grade heat to electricity (Lozanova, 2009), etc. All the commercially operating ORC systems developed by ORMAT and discussed above make use of an indirect evaporation, in which the waste heat is used to heat the ORC fluid indirectly by first passing the heat to thermal oil or water, which is then used to preheat and vaporize the working fluid. This adds not only to the cost of the system but also to the irreversibility. In order to eliminate this, General Electric (GE) is currently working out ways of modifying the system to make use of direct evaporators 42PDF Image | Northumbria Research Link
