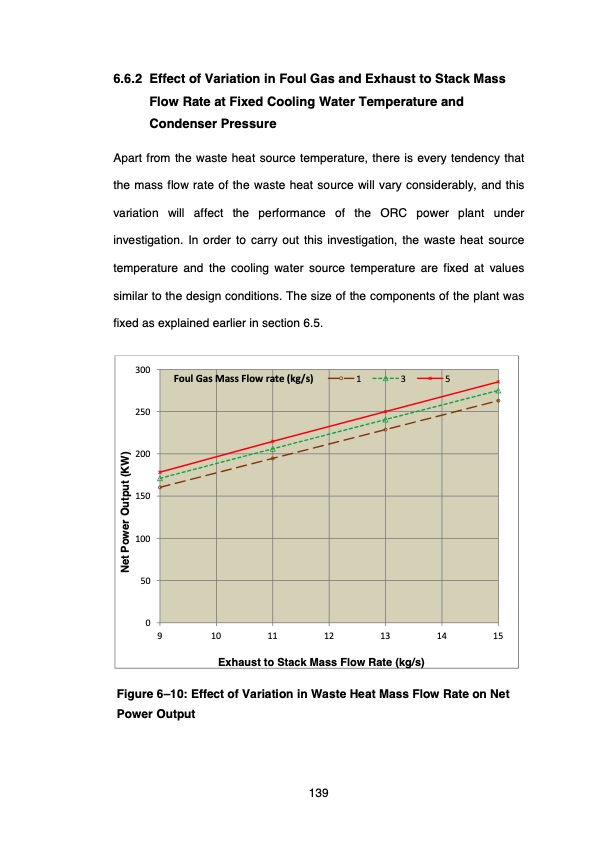

6.6.2 Effect of Variation in Foul Gas and Exhaust to Stack Mass Flow Rate at Fixed Cooling Water Temperature and Condenser Pressure Apart from the waste heat source temperature, there is every tendency that the mass flow rate of the waste heat source will vary considerably, and this variation will affect the performance of the ORC power plant under investigation. In order to carry out this investigation, the waste heat source temperature and the cooling water source temperature are fixed at values similar to the design conditions. The size of the components of the plant was fixed as explained earlier in section 6.5. 300 250 200 150 100 50 0 9 10 11 12 13 14 15 Exhaust to Stack Mass Flow Rate (kg/s) Foul Gas Mass Flow rate (kg/s) 1 3 5 Figure 6–10: Effect of Variation in Waste Heat Mass Flow Rate on Net Power Output 139 Net Power Output (KW)PDF Image | Northumbria Research Link
