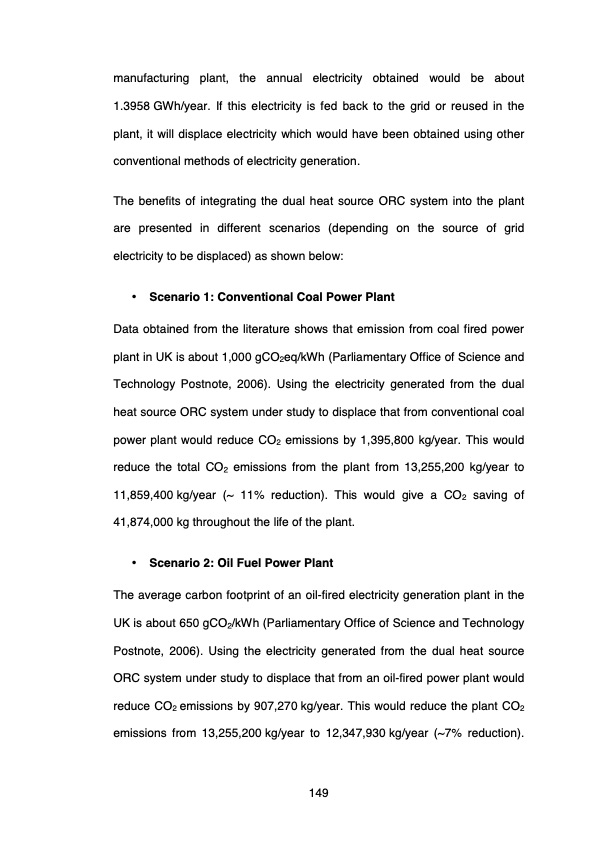

manufacturing plant, the annual electricity obtained would be about 1.3958 GWh/year. If this electricity is fed back to the grid or reused in the plant, it will displace electricity which would have been obtained using other conventional methods of electricity generation. The benefits of integrating the dual heat source ORC system into the plant are presented in different scenarios (depending on the source of grid electricity to be displaced) as shown below: • Scenario 1: Conventional Coal Power Plant Data obtained from the literature shows that emission from coal fired power plant in UK is about 1,000 gCO2eq/kWh (Parliamentary Office of Science and Technology Postnote, 2006). Using the electricity generated from the dual heat source ORC system under study to displace that from conventional coal power plant would reduce CO2 emissions by 1,395,800 kg/year. This would reduce the total CO2 emissions from the plant from 13,255,200 kg/year to 11,859,400 kg/year (~ 11% reduction). This would give a CO2 saving of 41,874,000 kg throughout the life of the plant. • Scenario 2: Oil Fuel Power Plant The average carbon footprint of an oil-fired electricity generation plant in the UK is about 650 gCO2/kWh (Parliamentary Office of Science and Technology Postnote, 2006). Using the electricity generated from the dual heat source ORC system under study to displace that from an oil-fired power plant would reduce CO2 emissions by 907,270 kg/year. This would reduce the plant CO2 emissions from 13,255,200 kg/year to 12,347,930 kg/year (~7% reduction). 149PDF Image | Northumbria Research Link
