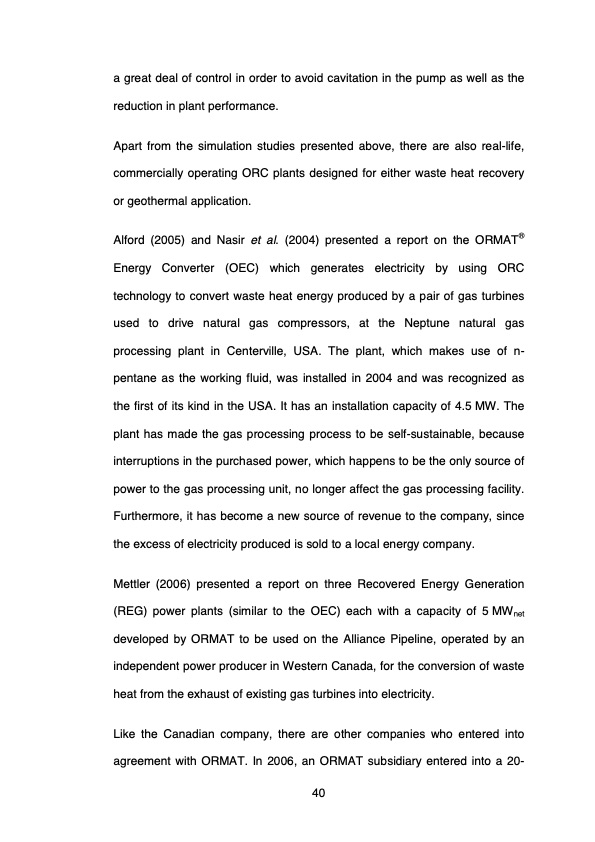

a great deal of control in order to avoid cavitation in the pump as well as the reduction in plant performance. Apart from the simulation studies presented above, there are also real-life, commercially operating ORC plants designed for either waste heat recovery or geothermal application. Alford (2005) and Nasir et al. (2004) presented a report on the ORMAT® Energy Converter (OEC) which generates electricity by using ORC technology to convert waste heat energy produced by a pair of gas turbines used to drive natural gas compressors, at the Neptune natural gas processing plant in Centerville, USA. The plant, which makes use of n- pentane as the working fluid, was installed in 2004 and was recognized as the first of its kind in the USA. It has an installation capacity of 4.5 MW. The plant has made the gas processing process to be self-sustainable, because interruptions in the purchased power, which happens to be the only source of power to the gas processing unit, no longer affect the gas processing facility. Furthermore, it has become a new source of revenue to the company, since the excess of electricity produced is sold to a local energy company. Mettler (2006) presented a report on three Recovered Energy Generation (REG) power plants (similar to the OEC) each with a capacity of 5 MWnet developed by ORMAT to be used on the Alliance Pipeline, operated by an independent power producer in Western Canada, for the conversion of waste heat from the exhaust of existing gas turbines into electricity. Like the Canadian company, there are other companies who entered into agreement with ORMAT. In 2006, an ORMAT subsidiary entered into a 20- 40PDF Image | OPTIMISING THERMAL ENERGY RECOVERY
