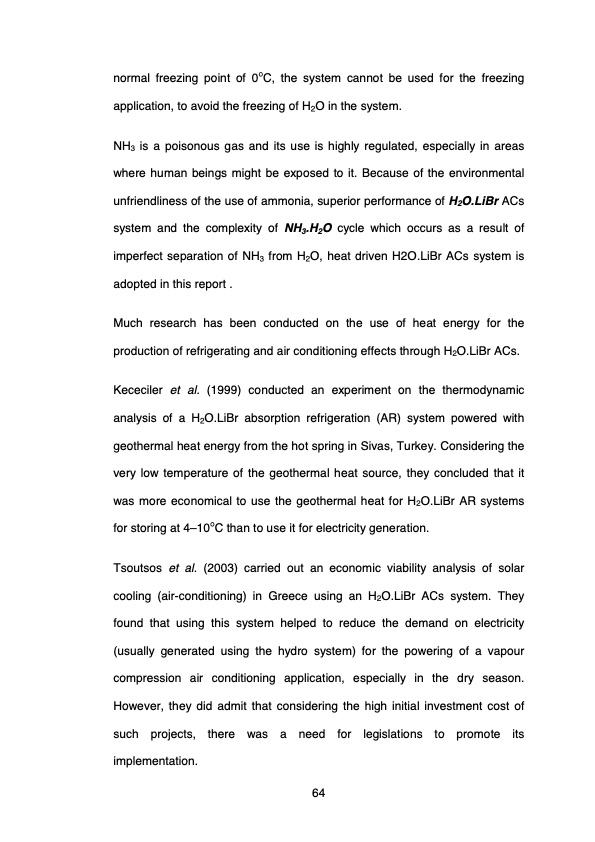

normal freezing point of 0oC, the system cannot be used for the freezing application, to avoid the freezing of H2O in the system. NH3 is a poisonous gas and its use is highly regulated, especially in areas where human beings might be exposed to it. Because of the environmental unfriendliness of the use of ammonia, superior performance of H2O.LiBr ACs system and the complexity of NH3.H2O cycle which occurs as a result of imperfect separation of NH3 from H2O, heat driven H2O.LiBr ACs system is adopted in this report . Much research has been conducted on the use of heat energy for the production of refrigerating and air conditioning effects through H2O.LiBr ACs. Kececiler et al. (1999) conducted an experiment on the thermodynamic analysis of a H2O.LiBr absorption refrigeration (AR) system powered with geothermal heat energy from the hot spring in Sivas, Turkey. Considering the very low temperature of the geothermal heat source, they concluded that it was more economical to use the geothermal heat for H2O.LiBr AR systems for storing at 4–10oC than to use it for electricity generation. Tsoutsos et al. (2003) carried out an economic viability analysis of solar cooling (air-conditioning) in Greece using an H2O.LiBr ACs system. They found that using this system helped to reduce the demand on electricity (usually generated using the hydro system) for the powering of a vapour compression air conditioning application, especially in the dry season. However, they did admit that considering the high initial investment cost of such projects, there was a need for legislations to promote its implementation. 64PDF Image | OPTIMISING THERMAL ENERGY RECOVERY
