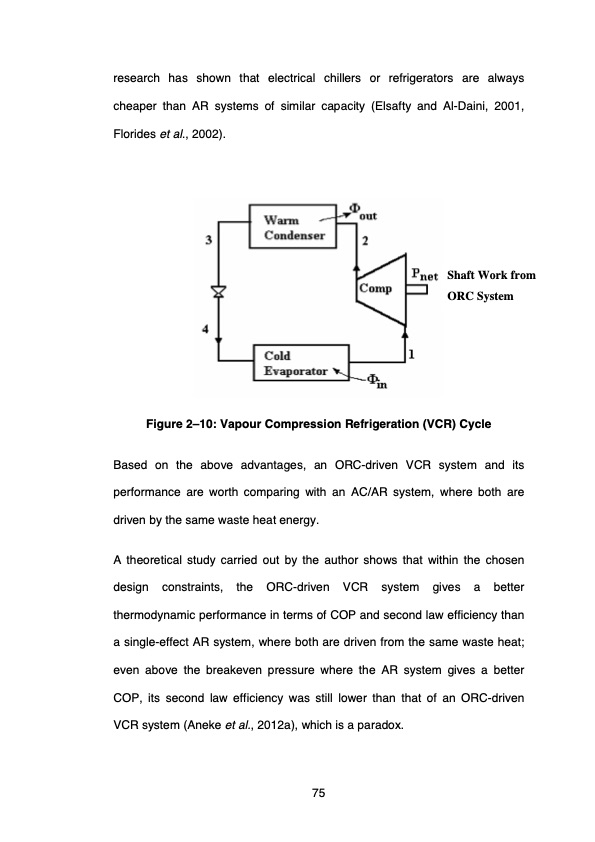

research has shown that electrical chillers or refrigerators are always cheaper than AR systems of similar capacity (Elsafty and Al-Daini, 2001, Florides et al., 2002). Figure 2–10: Vapour Compression Refrigeration (VCR) Cycle Based on the above advantages, an ORC-driven VCR system and its performance are worth comparing with an AC/AR system, where both are driven by the same waste heat energy. A theoretical study carried out by the author shows that within the chosen design constraints, the ORC-driven VCR system gives a better thermodynamic performance in terms of COP and second law efficiency than a single-effect AR system, where both are driven from the same waste heat; even above the breakeven pressure where the AR system gives a better COP, its second law efficiency was still lower than that of an ORC-driven VCR system (Aneke et al., 2012a), which is a paradox. 75 Shaft Work from ORC SystemPDF Image | OPTIMISING THERMAL ENERGY RECOVERY
