PDF Publication Title:

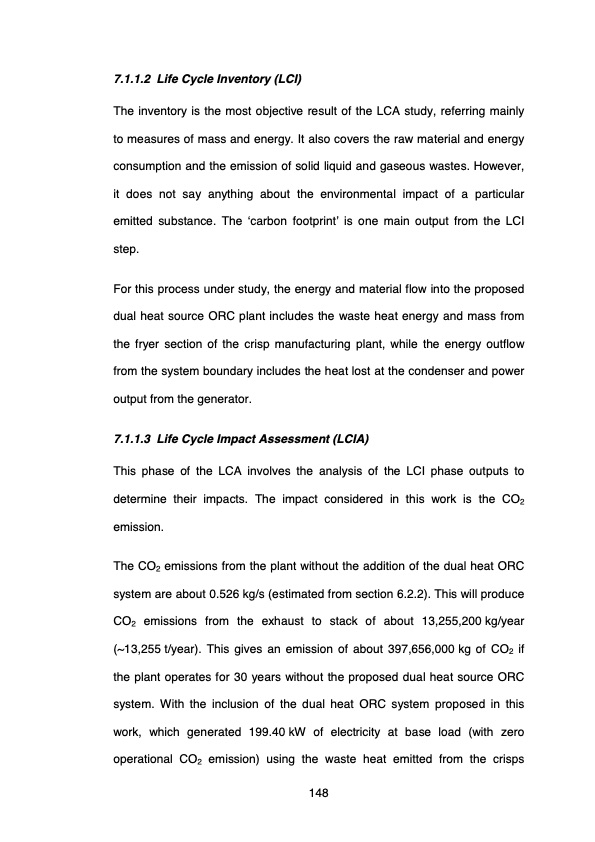

Text from PDF Page: 169
7.1.1.2 Life Cycle Inventory (LCI) The inventory is the most objective result of the LCA study, referring mainly to measures of mass and energy. It also covers the raw material and energy consumption and the emission of solid liquid and gaseous wastes. However, it does not say anything about the environmental impact of a particular emitted substance. The ‘carbon footprint’ is one main output from the LCI step. For this process under study, the energy and material flow into the proposed dual heat source ORC plant includes the waste heat energy and mass from the fryer section of the crisp manufacturing plant, while the energy outflow from the system boundary includes the heat lost at the condenser and power output from the generator. 7.1.1.3 Life Cycle Impact Assessment (LCIA) This phase of the LCA involves the analysis of the LCI phase outputs to determine their impacts. The impact considered in this work is the CO2 emission. The CO2 emissions from the plant without the addition of the dual heat ORC system are about 0.526 kg/s (estimated from section 6.2.2). This will produce CO2 emissions from the exhaust to stack of about 13,255,200 kg/year (~13,255 t/year). This gives an emission of about 397,656,000 kg of CO2 if the plant operates for 30 years without the proposed dual heat source ORC system. With the inclusion of the dual heat ORC system proposed in this work, which generated 199.40 kW of electricity at base load (with zero operational CO2 emission) using the waste heat emitted from the crisps 148PDF Image | OPTIMISING THERMAL ENERGY RECOVERY
