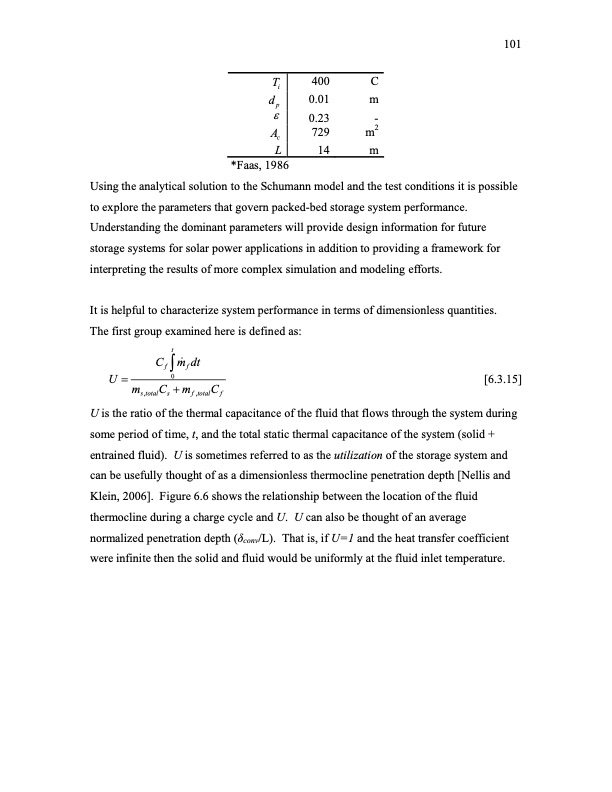

0.23 - Ac 729 m2 101 Ti 400 C dp 0.01 m ε L 14 m *Faas, 1986 Using the analytical solution to the Schumann model and the test conditions it is possible to explore the parameters that govern packed-bed storage system performance. Understanding the dominant parameters will provide design information for future storage systems for solar power applications in addition to providing a framework for interpreting the results of more complex simulation and modeling efforts. It is helpful to characterize system performance in terms of dimensionless quantities. The first group examined here is defined as: t C f ∫ m& f d t U= 0 [6.3.15] ms,totalCs +mf ,totalCf U is the ratio of the thermal capacitance of the fluid that flows through the system during some period of time, t, and the total static thermal capacitance of the system (solid + entrained fluid). U is sometimes referred to as the utilization of the storage system and can be usefully thought of as a dimensionless thermocline penetration depth [Nellis and Klein, 2006]. Figure 6.6 shows the relationship between the location of the fluid thermocline during a charge cycle and U. U can also be thought of an average normalized penetration depth (δconv/L). That is, if U=1 and the heat transfer coefficient were infinite then the solid and fluid would be uniformly at the fluid inlet temperature.PDF Image | Organic Rankine Cycle Solar-Thermal Powerplants
