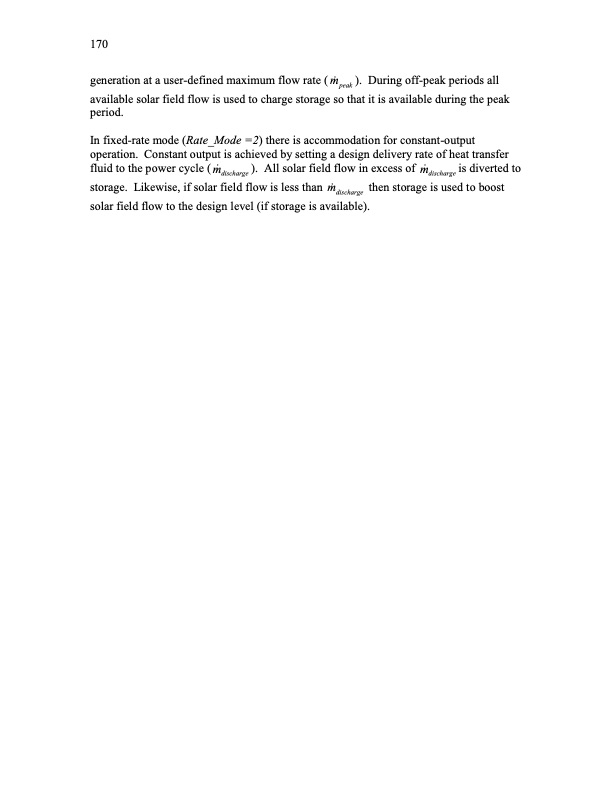

170 generation at a user-defined maximum flow rate ( m& peak ). During off-peak periods all available solar field flow is used to charge storage so that it is available during the peak period. In fixed-rate mode (Rate_Mode =2) there is accommodation for constant-output operation. Constant output is achieved by setting a design delivery rate of heat transfer fluid to the power cycle ( m& discharge ). All solar field flow in excess of m& discharge is diverted to storage. Likewise, if solar field flow is less than m& discharge then storage is used to boost solar field flow to the design level (if storage is available).PDF Image | Organic Rankine Cycle Solar-Thermal Powerplants
