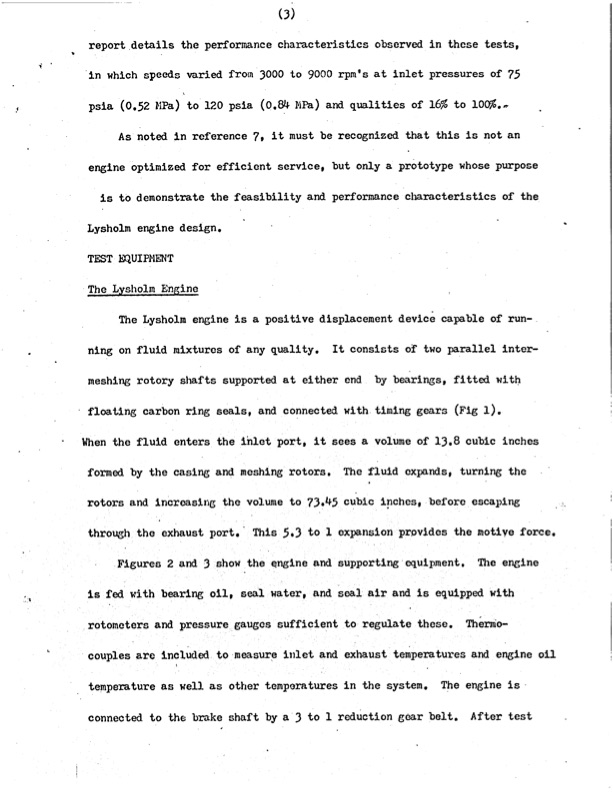

f 5 psia (0.32 MPa) to 120 psia (0.84 Wa) and qualities of 16%to lo%.* As noted in reference 7, it must be recognized that this is notan engine optimized for efficient service, but only a prototype whose purpose is to demonstrate the feasibility and performance characteristics of the Lysholm engine design. TEST EQUIPI'IENT The Lysholm Engine The Lysholm engine is a positive displacement device capable of run- ning on fluid mixtures of any quality. It consists of two parallel inter- meshing rotory shafts supported a t either end bj.bearings, fitted with floating carbon ring seals, and connected with Liming gears (Fig 1). When the fluid enters the inlet port, it sees a volume of 13.8 cubic inches formed by the casing and meshing rotors. The fluid cxpnds, turning the rotors and increasirig the volume to 73.45 cubic inches, beforeescaping through the exhaust port.' This 5.3 t o 1 oxpansio provides the motive force. ures 2 and 3 engine and s orting equipment, The e x i n e isfedwithbearingoil,sealwater, andsealairandisequippedwith rotometers and pressure gauges sufficient t o regulate these. Them'o- couplesareincluded to measure itilet and exhaust temperatures and engine oil temperature as well. as other temperatures i n the system. The engine is connected t o the brake shaft by a 3 t o 1 reduction gear belt. After test i ' . report details the performance characteristics observed in these tests, in whichspeedsvaried froin3000to 9000 rpm's at inlet pressures of 75 - I 'PDF Image | Performance Characteristics of the Lysholm Engine
