Text from PDF Page: 010

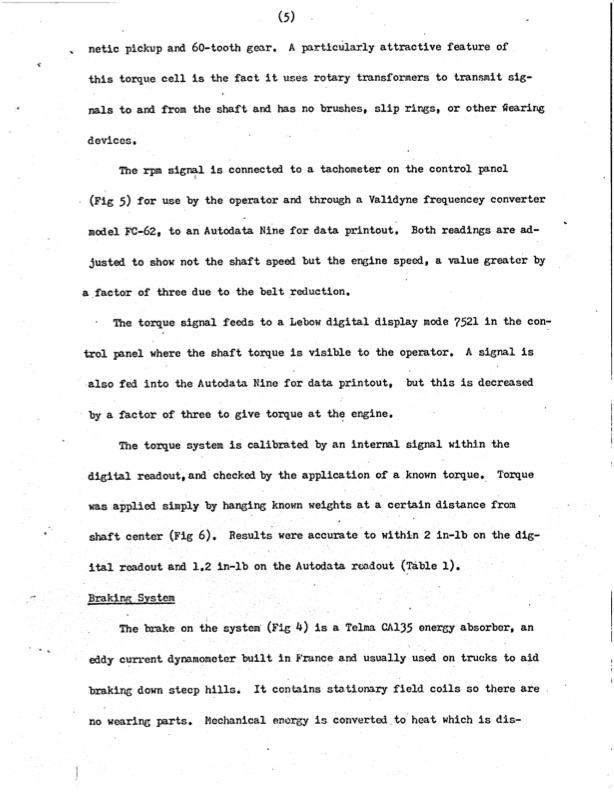

. , + i- netic pickup and 60-tooth gear, A particularly attractive feature of this torque cell is the fact itusesrotary transformers to transmit sig- nals toandfrom the shaft andhasno brushes, sliprings,or other fiearirig devices, Therpm sigylisconnected to a tachometer on the control panel (Fig 5)for use by the operator and through a Validyne frequencey converter modelFC-62,to an Autodata Nine fordataprintout. Both readings aread- justed t o show not the shaft speed but the engine speed, a value greater by afactor of three due to the belt reduction, I . by a factor of three to give torque at the engine, The torque system is calibrated by an internal signal within the digital readout,and checkedby the application of a known torque. Torque was applied simply by hanging knom weights at a certain distance fron shaftcenter(Fig6). Resultswereaccuratetowithh2in-lbonthedig- ital readout and 1.2 in-lb on the Autodata rcadout (Tible 1). Braking System Thebrakeon the system' (Fig 4) is a Telmaa135energy absorber, an eddy current dynamometer built in Franceandusually used on trucks toaid braking down steep hills. It conkins stationary field coils so there are no wearing parts. Ikchanical energy is converted to heatwhichisdfs- Thetorque signal feeds to a Lebow digital display mode7521in the con- trolpanel where the shaft torque is visible t o the operator. A signal is alsofed into the Autodata Nine for data printout, but this is decreased IPDF Image | Performance Characteristics of the Lysholm Engine
