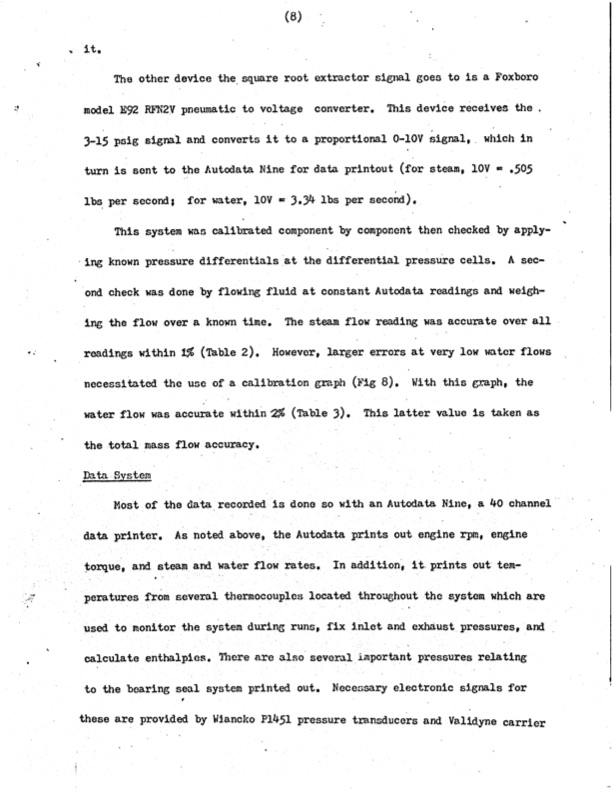

.t -. < 5 it. model E92“X2V pneumatic to voltage converter. This device receives the . 3-15psigsigml and converts it to a proportional 0-1OV Bignal, which in turn is sent to the Autodata Nine for data printout (for steam, 1OV = .505 lbs per second: for water, 1OV = 3.34 lbs per second), This system was calibrated component by component then checked by apply- ’ ing known pressure differentials at the differential pressure cells. A sec- ond check was done by flowing fluid at ConstantAutodata readings and weigh- ingthe flow over a known time, The steam flow reading was accurate over all readings within 1% (Table 2). However, larger errors at very low watcr flows necessitated the use of a calibration grzph (Pig 8). With this graph, the water flow was accurate within2%(Table 3). Thislatter valueistaken as the totalmass flow accuracy. Data System Most of the data recorded is done so with an Autodata Nine, a 40 channel data printer. As noted above, the Autodata prints ou-b engine rpm, engine torque, and steam water flow rates, In addition, it.prints out tem- peratures from several thermocouples located *u&out thc system which are US& to monitor the ystem during runs, fix I-nletand exhaust pressures, and calculate enthalpies, “herearcalsoseveral important pressures relating to the bearing seal system printed out. Necessary electronic signalsfor I these are provided by Wlsnclto a1451 pressure transducers and Validyne carrier The other device the.square root extractor signal goes to is a Foxboro ‘ .PDF Image | Performance Characteristics of the Lysholm Engine
