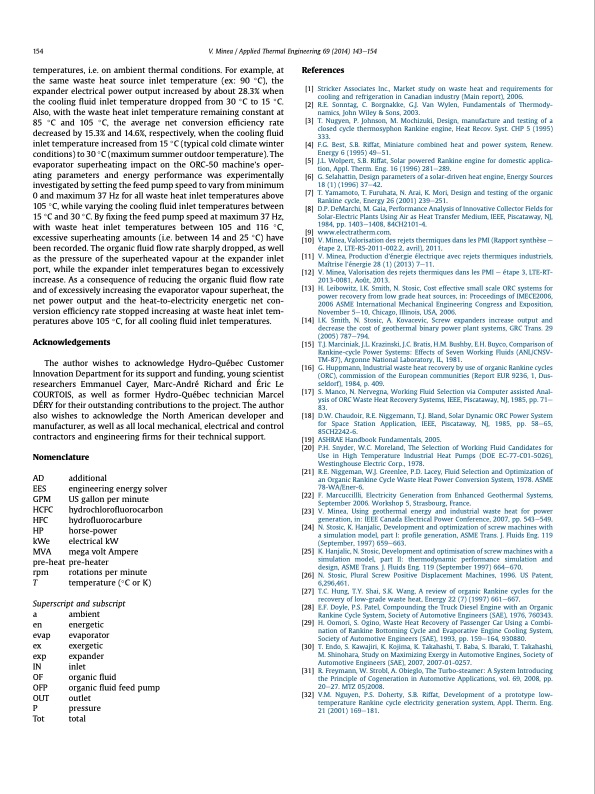

Text from PDF Page: 012
154 V. Minea / Applied Thermal Engineering 69 (2014) 143e154 temperatures, i.e. on ambient thermal conditions. For example, at References the same waste heat source inlet temperature (ex: 90 C), the expander electrical power output increased by about 28.3% when the cooling fluid inlet temperature dropped from 30 C to 15 C. Also, with the waste heat inlet temperature remaining constant at 85 C and 105 C, the average net conversion efficiency rate decreased by 15.3% and 14.6%, respectively, when the cooling fluid inlet temperature increased from 15 C (typical cold climate winter conditions) to 30 C (maximum summer outdoor temperature). The evaporator superheating impact on the ORC-50 machine’s oper- ating parameters and energy performance was experimentally investigated by setting the feed pump speed to vary from minimum 0 and maximum 37 Hz for all waste heat inlet temperatures above 105 C, while varying the cooling fluid inlet temperatures between 15 C and 30 C. By fixing the feed pump speed at maximum 37 Hz, with waste heat inlet temperatures between 105 and 116 C, excessive superheating amounts (i.e. between 14 and 25 C) have been recorded. The organic fluid flow rate sharply dropped, as well as the pressure of the superheated vapour at the expander inlet port, while the expander inlet temperatures began to excessively increase. As a consequence of reducing the organic fluid flow rate and of excessively increasing the evaporator vapour superheat, the net power output and the heat-to-electricity energetic net con- version efficiency rate stopped increasing at waste heat inlet tem- peratures above 105 C, for all cooling fluid inlet temperatures. Acknowledgements The author wishes to acknowledge Hydro-Québec Customer Innovation Department for its support and funding, young scientist researchers Emmanuel Cayer, Marc-André Richard and Éric Le COURTOIS, as well as former Hydro-Québec technician Marcel DÉRY for their outstanding contributions to the project. The author also wishes to acknowledge the North American developer and manufacturer, as well as all local mechanical, electrical and control contractors and engineering firms for their technical support. Nomenclature AD additional EES engineering energy solver GPM US gallon per minute HCFC hydrochlorofluorocarbon HFC hydrofluorocarbure HP horse-power kWe electrical kW MVA mega volt Ampere pre-heat pre-heater rpm rotations per minute T temperature (C or K) Superscript and subscript a ambient en energetic evap evaporator ex exergetic exp expander IN inlet OF organic fluid OFP organic fluid feed pump OUT outlet P pressure Tot total [1] Stricker Associates Inc., Market study on waste heat and requirements for cooling and refrigeration in Canadian industry (Main report), 2006. [2] R.E. Sonntag, C. Borgnakke, G.J. Van Wylen, Fundamentals of Thermody- namics, John Wiley & Sons, 2003. [3] T. Nugyen, P. Johnson, M. Mochizuki, Design, manufacture and testing of a closed cycle thermosyphon Rankine engine, Heat Recov. Syst. CHP 5 (1995) 333. [4] F.G. Best, S.B. Riffat, Miniature combined heat and power system, Renew. Energy 6 (1995) 49e51. [5] J.L. Wolpert, S.B. Riffat, Solar powered Rankine engine for domestic applica- tion, Appl. Therm. Eng. 16 (1996) 281e289. [6] G. Selahattin, Design parameters of a solar-driven heat engine, Energy Sources 18 (1) (1996) 37e42. [7] T. Yamamoto, T. Furuhata, N. Arai, K. Mori, Design and testing of the organic Rankine cycle, Energy 26 (2001) 239e251. [8] D.P.DeMarchi,M.Gaia,PerformanceAnalysisofInnovativeCollectorFieldsfor Solar-Electric Plants Using Air as Heat Transfer Medium, IEEE, Piscataway, NJ, 1984, pp. 1403e1408, 84CH2101-4. [9] www.electratherm.com. [10] V.Minea,ValorisationdesrejetsthermiquesdanslesPMI(Rapportsynthèsee étape 2, LTE-RS-2011-002.2, avril), 2011. [11] V. Minea, Production d’énergie électrique avec rejets thermiques industriels, Maîtrise l’énergie 28 (1) (2013) 7e11. [12] V. Minea, Valorisation des rejets thermiques dans les PMI e étape 3, LTE-RT- 2013-0081, Août, 2013. [13] H. Leibowitz, I.K. Smith, N. Stosic, Cost effective small scale ORC systems for power recovery from low grade heat sources, in: Proceedings of IMECE2006, 2006 ASME International Mechanical Engineering Congress and Exposition, November 5e10, Chicago, Illinois, USA, 2006. [14] I.K. Smith, N. Stosic, A. Kovacevic, Screw expanders increase output and decrease the cost of geothermal binary power plant systems, GRC Trans. 29 (2005) 787e794. [15] T.J. Marciniak, J.L. Krazinski, J.C. Bratis, H.M. Bushby, E.H. Buyco, Comparison of Rankine-cycle Power Systems: Effects of Seven Working Fluids (ANL/CNSV- TM-87), Argonne National Laboratory, IL, 1981. [16] G.Huppmann,IndustrialwasteheatrecoverybyuseoforganicRankinecycles (ORC), commission of the European communities (Report EUR 9236, 1, Dus- seldorf), 1984, p. 409. [17] S. Manco, N. Nervegna, Working Fluid Selection via Computer assisted Anal- ysis of ORC Waste Heat Recovery Systems, IEEE, Piscataway, NJ, 1985, pp. 71e 83. [18] D.W. Chaudoir, R.E. Niggemann, T.J. Bland, Solar Dynamic ORC Power System for Space Station Application, IEEE, Piscataway, NJ, 1985, pp. 58e65, 85CH2242-6. [19] ASHRAE Handbook Fundamentals, 2005. [20] P.H. Snyder, W.C. Moreland, The Selection of Working Fluid Candidates for Use in High Temperature Industrial Heat Pumps (DOE EC-77-C01-5026), Westinghouse Electric Corp., 1978. [21] R.E. Niggeman, W.J. Greenlee, P.D. Lacey, Fluid Selection and Optimization of an Organic Rankine Cycle Waste Heat Power Conversion System, 1978. ASME 78-WA/Ener-6. [22] F. Marcuccillli, Electricity Generation from Enhanced Geothermal Systems, September 2006. Workshop 5, Strasbourg, France. [23] V. Minea, Using geothermal energy and industrial waste heat for power generation, in: IEEE Canada Electrical Power Conference, 2007, pp. 543e549. [24] N. Stosic, K. Hanjalic, Development and optimization of screw machines with a simulation model, part I: profile generation, ASME Trans. J. Fluids Eng. 119 (September, 1997) 659e663. [25] K. Hanjalic, N. Stosic, Development and optimisation of screw machines with a simulation model, part II: thermodynamic performance simulation and design, ASME Trans. J. Fluids Eng. 119 (September 1997) 664e670. [26] N. Stosic, Plural Screw Positive Displacement Machines, 1996. US Patent, 6,296,461. [27] T.C. Hung, T.Y. Shai, S.K. Wang, A review of organic Rankine cycles for the recovery of low-grade waste heat, Energy 22 (7) (1997) 661e667. [28] E.F. Doyle, P.S. Patel, Compounding the Truck Diesel Engine with an Organic Rankine Cycle System, Society of Automotive Engineers (SAE), 1976, 760343. [29] H. Oomori, S. Ogino, Waste Heat Recovery of Passenger Car Using a Combi- nation of Rankine Bottoming Cycle and Evaporative Engine Cooling System, Society of Automotive Engineers (SAE), 1993, pp. 159e164, 930880. [30] T. Endo, S. Kawajiri, K. Kojima, K. Takahashi, T. Baba, S. Ibaraki, T. Takahashi, M. Shinohara, Study on Maximizing Exergy in Automotive Engines, Society of Automotive Engineers (SAE), 2007, 2007-01-0257. [31] R. Freymann, W. Strobl, A. Obieglo, The Turbo-steamer: A System Introducing the Principle of Cogeneration in Automotive Applications, vol. 69, 2008, pp. 20e27. MTZ 05/2008. [32] V.M. Nguyen, P.S. Doherty, S.B. Riffat, Development of a prototype low- temperature Rankine cycle electricity generation system, Appl. Therm. Eng. 21 (2001) 169e181.PDF Image | Power generation with ORC machines low-grade waste heat
