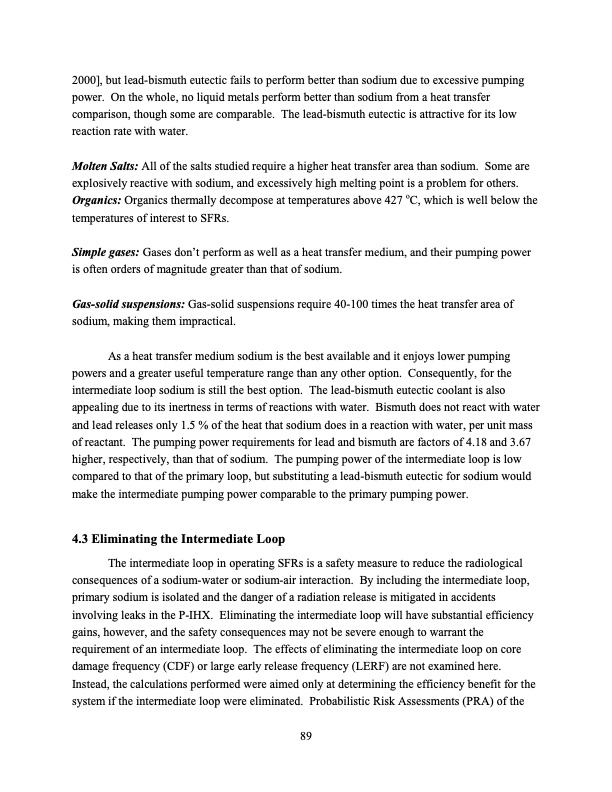

Text from PDF Page: 089
2000], but lead-bismuth eutectic fails to perform better than sodium due to excessive pumping power. On the whole, no liquid metals perform better than sodium from a heat transfer comparison, though some are comparable. The lead-bismuth eutectic is attractive for its low reaction rate with water. Molten Salts: All of the salts studied require a higher heat transfer area than sodium. Some are explosively reactive with sodium, and excessively high melting point is a problem for others. Organics: Organics thermally decompose at temperatures above 427 oC, which is well below the temperatures of interest to SFRs. Simple gases: Gases don’t perform as well as a heat transfer medium, and their pumping power is often orders of magnitude greater than that of sodium. Gas-solid suspensions: Gas-solid suspensions require 40-100 times the heat transfer area of sodium, making them impractical. As a heat transfer medium sodium is the best available and it enjoys lower pumping powers and a greater useful temperature range than any other option. Consequently, for the intermediate loop sodium is still the best option. The lead-bismuth eutectic coolant is also appealing due to its inertness in terms of reactions with water. Bismuth does not react with water and lead releases only 1.5 % of the heat that sodium does in a reaction with water, per unit mass of reactant. The pumping power requirements for lead and bismuth are factors of 4.18 and 3.67 higher, respectively, than that of sodium. The pumping power of the intermediate loop is low compared to that of the primary loop, but substituting a lead-bismuth eutectic for sodium would make the intermediate pumping power comparable to the primary pumping power. 4.3 Eliminating the Intermediate Loop The intermediate loop in operating SFRs is a safety measure to reduce the radiological consequences of a sodium-water or sodium-air interaction. By including the intermediate loop, primary sodium is isolated and the danger of a radiation release is mitigated in accidents involving leaks in the P-IHX. Eliminating the intermediate loop will have substantial efficiency gains, however, and the safety consequences may not be severe enough to warrant the requirement of an intermediate loop. The effects of eliminating the intermediate loop on core damage frequency (CDF) or large early release frequency (LERF) are not examined here. Instead, the calculations performed were aimed only at determining the efficiency benefit for the system if the intermediate loop were eliminated. Probabilistic Risk Assessments (PRA) of the 89PDF Image | Supercritical Carbon Dioxide Cycle Analysis
