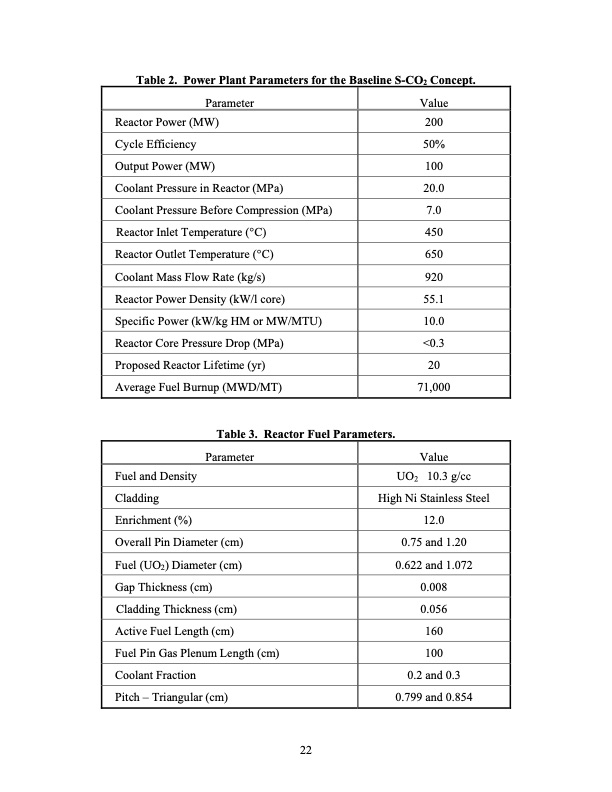

Table 2. Power Plant Parameters for the Baseline S-CO2 Concept. Parameter Reactor Power (MW) Cycle Efficiency Output Power (MW) Coolant Pressure in Reactor (MPa) Coolant Pressure Before Compression (MPa) Reactor Inlet Temperature (°C) Reactor Outlet Temperature (°C) Coolant Mass Flow Rate (kg/s) Reactor Power Density (kW/l core) Specific Power (kW/kg HM or MW/MTU) Reactor Core Pressure Drop (MPa) Proposed Reactor Lifetime (yr) Average Fuel Burnup (MWD/MT) Table 3. Reactor Fuel Parameters. Parameter Fuel and Density Cladding Enrichment (%) Overall Pin Diameter (cm) Fuel (UO2) Diameter (cm) Gap Thickness (cm) Cladding Thickness (cm) Active Fuel Length (cm) Fuel Pin Gas Plenum Length (cm) Coolant Fraction Pitch – Triangular (cm) V alue 200 50% 100 20.0 7.0 450 650 920 55.1 10.0 <0.3 20 71,000 V alue UO2 10.3 g/cc High Ni Stainless Steel 12.0 0.75 and 1.20 0.622 and 1.072 0.008 0.056 160 100 0.2 and 0.3 0.799 and 0.854 22PDF Image | Supercritical CO2 Direct Cycle Gas Fast Reactor (SC-GFR)
