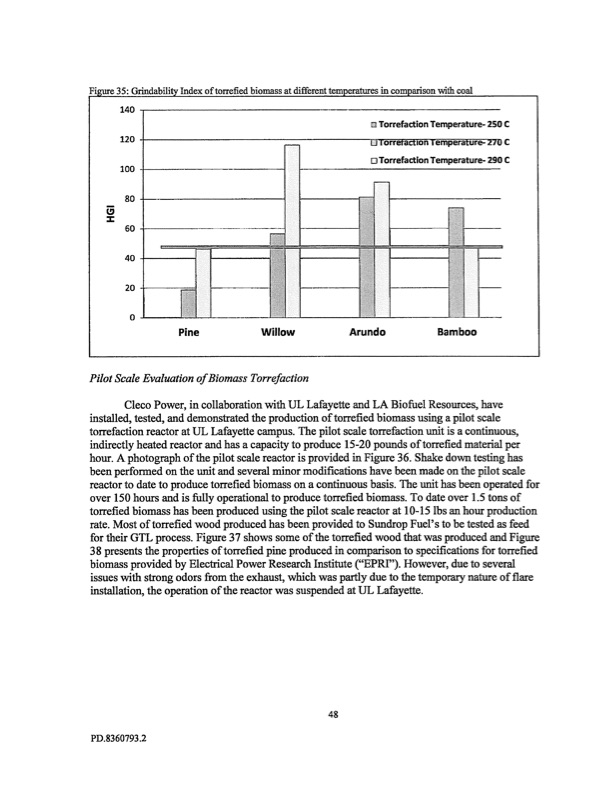

Figure 35: Grindability Index of torrefied biomass at different temperatures in comparison with coal 120 n 100 BII Torrefaction Temperature- 250 C O-rorretanlon temperature- 271)C 80 ti I 60 40 20 a Pine Willow Arundo Barnboo Pilot Scale Evaluation of Biomass Torrefaction Cleco Power, in collaborationwith UL Lafayette and LA Biofuel Resources, have installed, tested, and demonstrated the production of torrefied biomass using a pilot scale torrefaction reactor at UL Lafayette campus. The pilot scale torrefaction unit is a continuous, indirectly heated reactor and has a capacity to produce 15-20 pounds of torrefied material per hour. A photograph of the pilot scale reactor is provided in Figure 36. Shake down testing has been performed on the unit and several minor modifications have been made on the pilot scale reactor to date to produce torrefied biomass on a continuous basis. The unit has been operated for over 150 hours and is h l l y operational to produce torrefied biomass. To date over 1.5 tons of torrefied biomass has been produced using the pilot scale reactor at 10-15 lbs an hour production rate. Most of torrefied wood produced has been provided to Sundrop Fuel’s to be tested as feed for their GTL process. Figure 37 shows some of the torrefied wood that was produced and Figure 38 presents the properties of torrefied pine produced in comparison to specificationsfor torrefied biomass provided by Electrical Power Research Institute (“EPRI”). However, due to several issues with strong odors from the exhaust, which was partly due to the temporary nature of flare installation, the operation of the reactor was suspended at UL Lafayette. 48 PD.8360793.2PDF Image | THE APPLICATION OF KENTUCKY POWER
