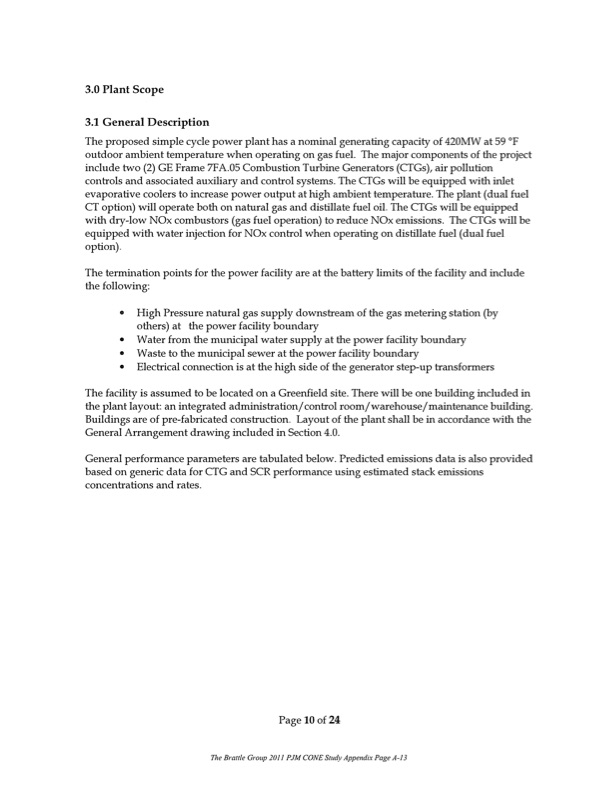

Text from PDF Page: 128
3.0 Plant Scope 3.1 GeneralDescription The proposed simple cycle power plant has a nominal generating capacity of 420MW at 59 OF outdoor ambient temperature when operating on gas fuel. The major components of the project iiiclude two (2) GE Frame 7FA.05 Combustion Turbine Generators (CTGs), air pollution corttrols a i d associated auxiliary and control systems. The CTGs will be equipped with inlet evaporative coolers to increase power output at high ambient temperature. The plant (dual fuel CT option) will operate both on natural gas and distillate fuel oil. The CTGs will be equipped with dry-low NOx combustors (gas fuel operation) to reduce NOx emissions. The CTGs will be equipped witli water injection for NOx control when operating on distillate fuel (dual fuel option). The termination points for the power facility are at the battery limits of the facility and include the following: High Pressure natural gas supply downstream of the gas metering station (by others) at the power facility boundary Water from the municipal water supply at the power facility boundary Waste to the municipal sewer at the power facility boundary Electrical connection is at the high side of tlie generator step-up transformers The facility is assumed to be located on a Greenfield site. There will be one building included in the plant layout: an integrated administration/control room/warehouse/maintenance building. Buildings are of pre-fabricated construction. Layout of the plant shall be in accordance with the General Arrangement drawing included in Section 4.0. General performance parameters are tabulated below. Predicted emissions data is also provided based on generic data for CTG and SCR performance using estimated stack emissions concentrations and rates. 0 0 0 0 Page 10 of 24 The Brnttle Group 2011 PJM CONE Stirdy Appettdru Pnge A-I3PDF Image | THE APPLICATION OF KENTUCKY POWER
