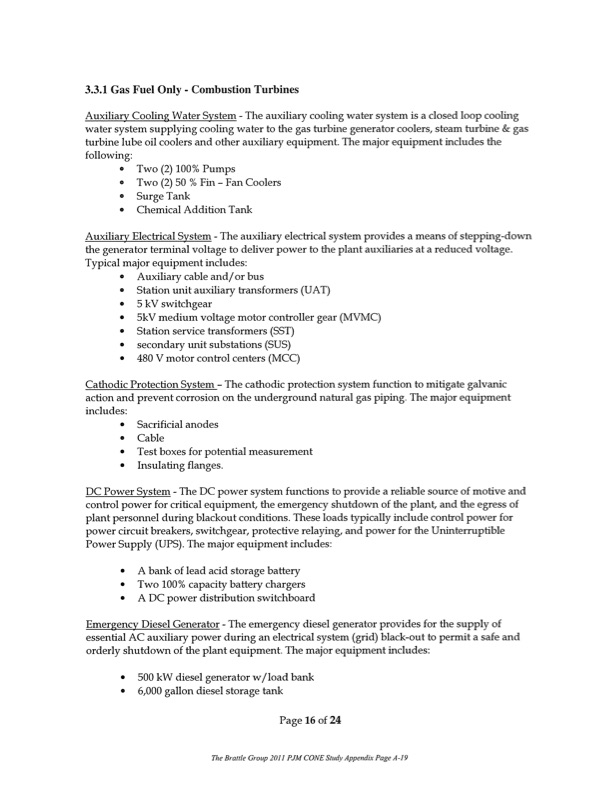

Text from PDF Page: 134
3.3.1 Gas Fuel Only - Combustion Auxiliary Cooling- Water System - The auxiliary cooling water system is a closed loop cooling water system supplying cooling water to the gas turbine generator coolers, steam turbine & gas turbine lube oil coolers and other auxiliary equipment. The major equipment includes the following: * Two (2) 100%Pumps * * SurgeTank * Chemical Addition Tank Two (2) 50 % Fin - Fan Coolers Auxiliary Electrical Svstem - The auxiliary electrical system provides a means of stepping-down the generator terminal voltage to deliver power to the plant auxiliaries at a reduced voltage. Typical major equipment includes: * * Auxiliary cable and/ or bus Station unit auxiliary transforiners (UAT) 0 5 kV switchgear 5kV medium voltage motor controller gear (MVMC) 0 secondary unit substations (SUS) 0 0 Station service transformers (SST) 480 V motor control centers (MCC) Cathodic Protection System - The cathodic protection system function to mitigate galvanic action and prevent corrosion on the underground natural gas piping. The major equipment includes: 0 Sacrificial anodes 0 Cable 0 Test boxes for potential measurement 0 0 Insulating flanges. DC Power System - The DC power system functions to provide a reliable source of motive and control power for critical equipment, the emergency shutdown of the plant, and the egress of plant personnel during blackout conditions. These loads typically include control power for power circuit breakers, switchgear, protective relaying, a i d power for the Uninterruptible Power Supply (UPS).The major equipment includes: A bank of lead acid storage battery Two 100%capacity battery chargers A DC power distribution switchboard Emerg- enc.y Diesel Generator - The emergency diesel generator provides for the supply of essential AC auxiliary power during an electrical system (grid) black-out to permit a safe and orderly shutdown of the plant equipment. The major equipment includes: 500 kW diesel generator w/load bank 6,000 gallon diesel storage tank Page 16 of 24 TheBrattle Group201I PJM CONEStir@ Appendi.x PageA-I9 0 0 0 0 0PDF Image | THE APPLICATION OF KENTUCKY POWER
