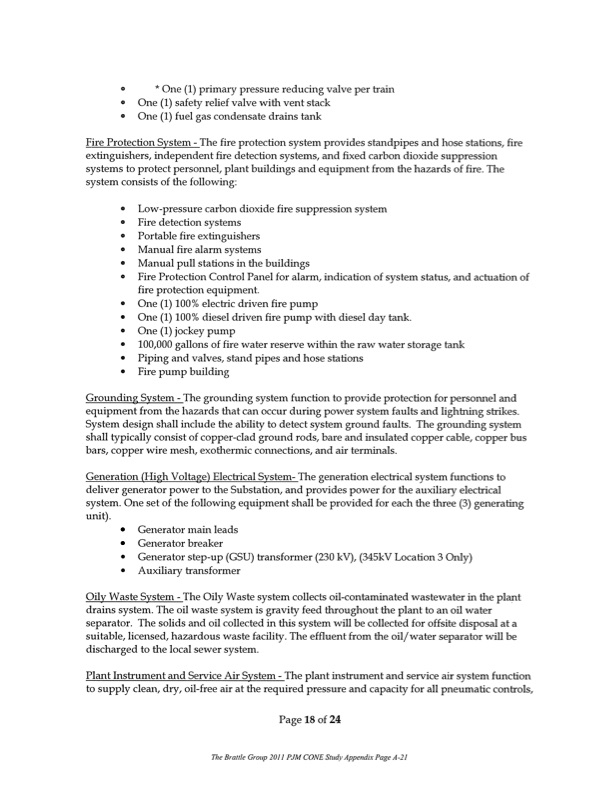

Text from PDF Page: 136
* One (1)primary pressure reducing valve per train One (1)safety relief valve with vent stack One (1)fuel gas condensate drains tank Fire Protection System - The fire protection system provides standpipes and hose stations, fire extinguishers, independent fire detection systems, and fixed carbon dioxide suppression systems to protect personnel, plant buildings and equipment from the hazards of fire. The system consists of the following: Low-pressure carbon dioxide fire suppression system Fire detection systems Portable fire extinguishers Manual fire alarm systems Manual pull stations in the buildings Fire Protection Control Panel for alarm, indication of system status, and actuation of fire protection equipment. One (1)100%electric driven fire pump One (1)100%diesel driven fire pump with diesel day tank. One (1)jockey pump 100,000 gallons of fire water reserve within the raw water storage tank Piping and valves, stand pipes and hose stations Fire pump building Grounding Svstem - The grounding system function to provide protection for personnel and equipment from the hazards that can occur during power system faults and lightning strikes. System design shall include the ability to detect system ground faults. The grounding system shall typically consist of copper-clad ground rods, bare and insulated copper cable, copper bus bars, copper wire mesh, exothermic connections, and air terminals. Generation (High Voltage) Electrical System- The generation electrical system functions to deliver generator power to the Substation, and provides power for the auxiliary electrical system. One set of the following equipment shall be provided for each the three (3) generating unit). Generator main leads Generator breaker Generator step-up (GSU) transformer (230 kV), (345kVLocation 3 Only) e 0 0 Auxiliary transformer Oilv Waste System - The Oily Waste system collects oil-contaminated wastewater in the plant drains system. The oil waste system is gravity feed throughout the plant to an oil water separator. The solids and oil collected in this system will be collected for offsite disposal at a suitable, licensed, hazardous waste facility. The effluent from the oil/ water separator will be discharged to the local sewer system. Plant Instrument and Service Air System - The plant instrument and service air system function to supply clean, diy, oil-free air at the required pressure and capacity for all pneumatic controls, Page 18 of 24 The Brarile Groiip 2011 PJM CONE Study Appendix Page A-21PDF Image | THE APPLICATION OF KENTUCKY POWER
