PDF Publication Title:

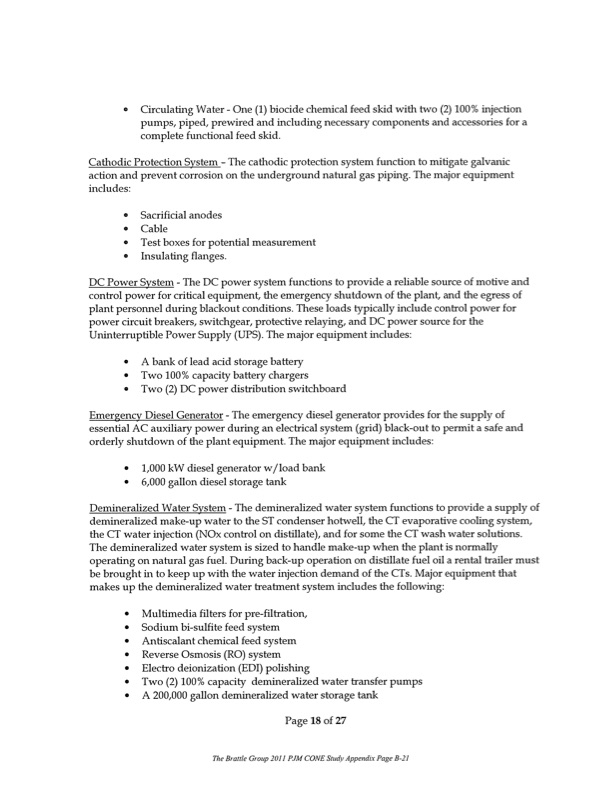

Text from PDF Page: 173
Circulating Water - One (1)biocide chemical feed skid with two (2) 100%injection pumps, piped, prewired and including necessary components and accessories for a complete functional feed skid. Cathodic Protection Svstem - The cathodic protection system function to mitigate galvanic action and prevent corrosion on the underground natural gas piping. The major equipment includes: * Sacrificial anodes 0 Cable Test boxes for potential measurement * Insulating flanges. DC Power Svstem - The DC power system functions to provide a reliable source of motive and control power for critical equipment, the emergency shutdown of the plant, and the egress of plant personnel during blackout conditions. These loads typically include control power for power circuit breakers, switchgear, protective relaying, and DC power source for the Uninterruptible Power Supply (UPS).The inajor equipment includes: A bank of lead acid storage battery Two 100%capacity battery chargers Two (2) DC power distribution switchboard Emerg-~encv Diesel Generator - The emergency diesel generator provides for the supply of essential AC auxiliary power during a n electrical system (grid) black-out to permit a safe a i d orderly shutdown of the plant equipment. The major equipment includes: 1,000 kW diesel generator w/load bank 6,000 gallon diesel storage tank Demineralized Water Svstein - The demineralized water system functions to provide a supply of demineralized make-up water to the ST condenser hotwell, the CT evaporative cooling system, the CT water injection (NOx control on distillate), and for some tlw CT wash water solutions. The demineralized water system is sized to hartdle make-up when the plant is normally operating on natural gas fuel. During back-up operation on distillate fuel oil a rental trailer must be brought in to keep u p with the water injection demand of the CTs. Major equipment that makes up the demineralized water treatment system includes the following: 0 Multimedia filters for pre-filtration, 0 Sodium bi-sulfite feed system 0 Antiscalant chemical feed system 0 Reverse Osinosis (RO) system 0 Electro deionization (EDI)polishing Two (2) 100%capacity demineralized water transfer pumps A 200,000 gallon demineralized water storage tank Page 18 of 27 The Brattle Group 201 1 RJM CONE S!irdy Appendix Page B-21 0 0 0 0 0 0 0 0PDF Image | THE APPLICATION OF KENTUCKY POWER
