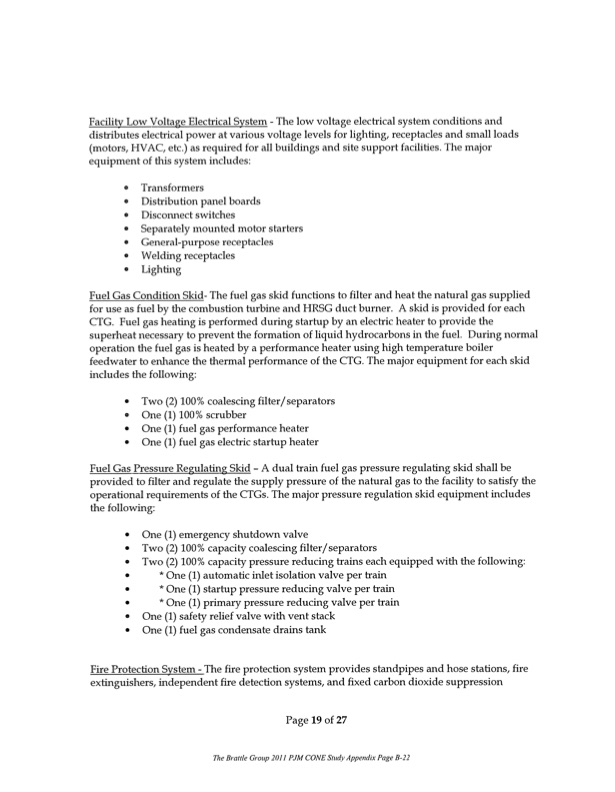

Facility Low Voltag-e Electrical System - The low voltage electrical system conditions and distributes electrical power at various voltage levels for lighting/ receptacles and sinall loads (motors, HVAC, etc.) as required for all buildings and site support facilities. The major equipment of this system includes: Transformers Distribution panel boards 0 Disconnect switches 0 Separately mounted motor starters 0 General-purpose receptacles 0 Welding receptacles 0 Lighting Fuel Gas Condition Skid- The fuel gas skid functions to filter and heat the natural gas supplied for use as fuel by the combustion turbine and HRSG duct burner. A skid is provided for each CTG. Fuel gas heating is performed during startup by an electric heater to provide the superheat necessary to prevent the formation of liquid hydrocarbons in the fuel. During normal operation the fuel gas is heated by a performance heater using high temperature boiler feedwater to enhance the thermal performance of the CTG. The major equipment for each skid includes the following: Two (2) 100%coalescing filter/separators 0 One (1)100%scrubber One (1)fuel gas performance heater One (1)fuel gas electric startup heater Fuel Gas,Pressure Reg- ulating Skid - A dual train fuel gas pressure regulating skid shall be provided to filter and regulate the supply pressure of the natural gas to the facility to satisfy the operational requirements of the CTGs. The major pressure regulation skid equipment includes the following: One (1)emergency shutdown valve Two (2) 100%capacity coalescing filter/separators Two (2)100%capacity pressure reducing trains each equipped with the following: * One (1)automatic inlet isolation valve per train * One (1)startup pressure reducing valve per train * One (1)primary pressure reducing valve per train One (1)safety relief valve with vent stack One (1)fuel gas condensate drains tank Fire Protection System - The fire protection system provides standpipes arid hose stations, fire extinguishers, independent fire detection systems, and fixed carbon dioxide suppression Page 19 of 27 The Brattle GIolrp 2011 PJM CONE Study Appendix Page B-22 0 0 0PDF Image | THE APPLICATION OF KENTUCKY POWER
