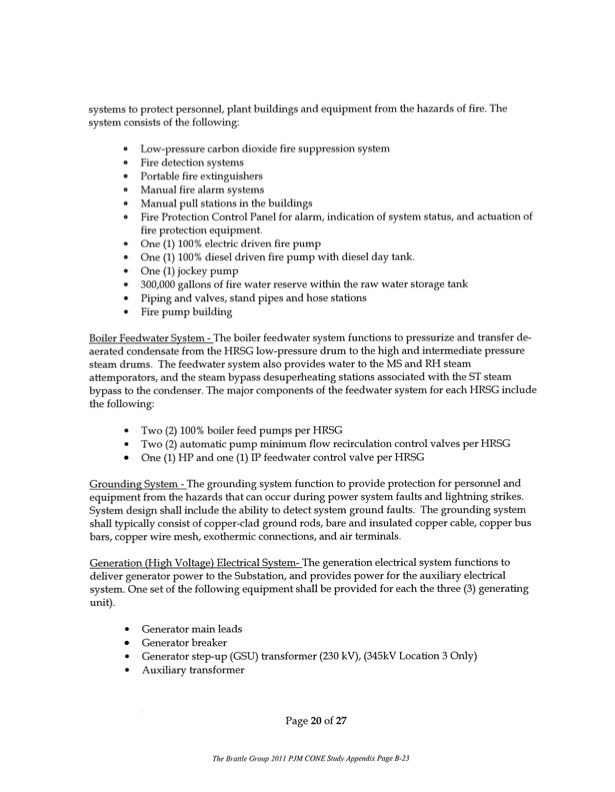

Text from PDF Page: 175
systems to protect personnel, plant buildings and equipment from the hazards of fire. The system consists of the following: Low-pressure carbon dioxide fire suppression system Fire detection systems Portable fire extinguishers Manual fire alarm systems Manual pull stations in the buildings Fire Protection Control Panel for alarm, indication of system status, and actuation of fire protection equipment. One (1)100%electric driven fire pump One (1)100%diesel driven fire pump with diesel day tank. One (1)jockey pump 300,000 gallons of fire water reserve within the raw water storage tank Piping and valves, stand pipes and hose stations Fire pump building Boiler Feedwater System - The boiler feedwater system functions to pressurize and transfer de- aerated condensate from the HRSG low-pressure drum to the high and intermediate pressure steam drums. The feedwater system also provides water to the MS and RH steam attemporators, and the steam bypass desuperheating stations associated with the ST steam bypass to the condenser. The major components of the feedwater system for each HRSG include the following: Two (2) 100%boiler feed pumps per HRSG Two (2)automatic pump minimum flow recirculationcontrol valves per HRSG One (1)HI' and one (1)IP feedwater control valve per HRSG Grounding System - The grounding system function to provide protection for personnel and equipment from the hazards that can occur during power system faults and lightning strikes. System design shall include the ability to detect system ground faults. The grounding system shall typically consist of copper-clad ground rods, bare and insulated copper cable, copper bus bars, copper wire mesh, exothermic connections, and air terminals. Generation (Hi-gh V oltag- e) Electrical System- The generation electrical system functions to deliver generator power to the Substation, and provides power for the auxiliary electrical system. One set of the following equipment shall be provided for each the three (3) generating unit). 0 Generator main leads Generator breaker 0 0 0 e 0 0 0 e 0 0 0 0 Generator step-up (GSU) transformer (230 kV), (345kV Location 3 Only) 0 0 Auxiliary transformer Page 20 of 27 The Bt nrrle GIoirp 201I PJM CONE Srirdy Appendi.~Page B-23PDF Image | THE APPLICATION OF KENTUCKY POWER
