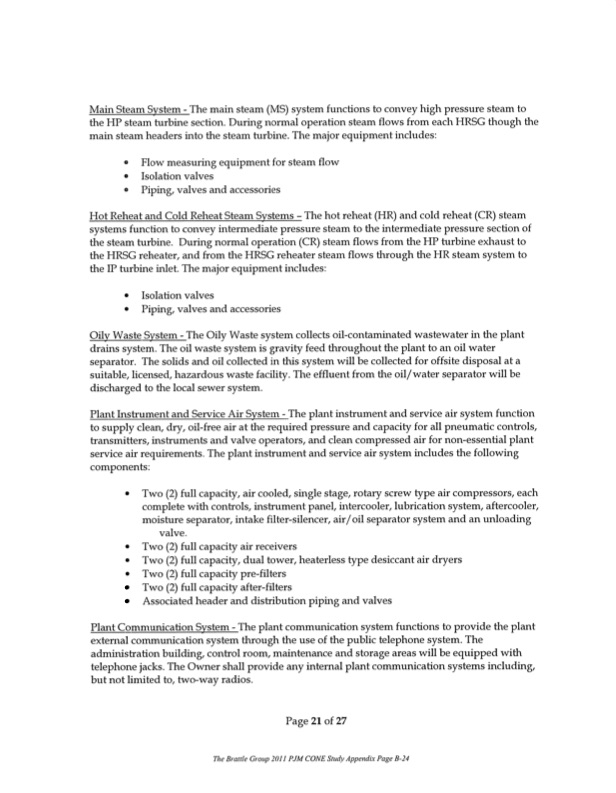

Text from PDF Page: 176
Main Steam System - The main steam (MS) system functions to convey high pressure steam to the HI‘ steam turbine section. During normal operation steam flows from each HRSG though the main steam headers into the steam turbine. The major equipment includes: Flow measuring equipment for steam flow e Isolation valves Piping, valves and accessories Hot Reheat and Cold Reheat Steam Systems - The hot reheat (HR) and cold reheat (CR) steam systems function to convey intermediate pressure steam to the intermediate pressure section of the steam turbine. During normal operation (CR)steam flows from the HP turbine exhaust to the HRSG reheater, and from the HRSG reheater steam flows through the HR steam system to the IP turbine inlet. The major equipment includes: 0 Isolation valves 0 Piping, valves and accessories Oilv Waste System - The Oily Waste system collects oil-contaminatedwastewater inthe plant drains system. The oil waste system is gravity feed throughout the plant to an oil water separator. The solids and oil collected in this system will be collected for offsite disposal at a suitable, licensed, hazardous waste facility. The effluent from the oil/ water separator will be discharged to the local sewer system. Plant Instrument and Service Air System - The plant instrument and service air system function to supply clean, dry, oil-free air at the required pressure and capacity for all pneumatic controls, transmitters, instruments aiid valve operators, and clean compressed air for non-essential plant service air requirements. The plant instrument and service air system includes the following components: Two (2) full capacity, air cooled, single stage, rotary screw type air compressors, each complete with controls, instrument panel, intercooler, lubrication system, aftercooler, moisture separator, intake filter-silencer, air/ oil separator system and an unloading valve. Two (2) full capacity air receivers Two (2) full capacity, dual tower, heaterless type desiccant air dryers Two (2) full capacity pre-filters Two (2) full capacity after-filters Associated header and distribution piping and valves Plant Communication System - The plant communication system functions to provide the plant external communication system through the use of the public telephone system. The administration building, control room, maintenance and storage areas will be equipped with telephone jacks. The Owner shall provide any internal plant communication systems including, but not limited to, two-way radios. Page 21 of 27 The Bruttle Groiip 2011 PJM CONE Study Appendix Puge 8-24 0 0 0 0 0PDF Image | THE APPLICATION OF KENTUCKY POWER
