PDF Publication Title:

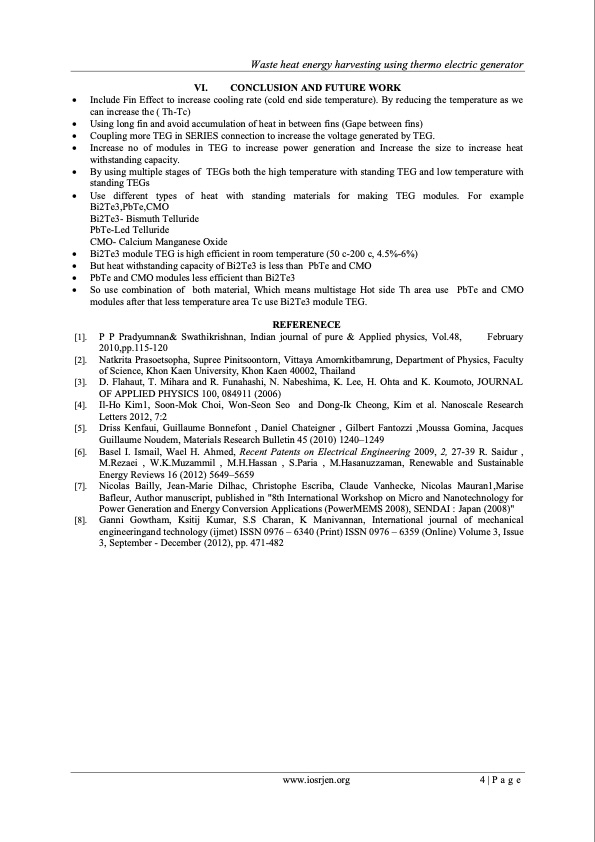

Text from PDF Page: 004
Waste heat energy harvesting using thermo electric generator VI. CONCLUSION AND FUTURE WORK Include Fin Effect to increase cooling rate (cold end side temperature). By reducing the temperature as we can increase the ( Th-Tc) Using long fin and avoid accumulation of heat in between fins (Gape between fins) Coupling more TEG in SERIES connection to increase the voltage generated by TEG. Increase no of modules in TEG to increase power generation and Increase the size to increase heat withstanding capacity. By using multiple stages of TEGs both the high temperature with standing TEG and low temperature with standing TEGs Use different types of heat with standing materials for making TEG modules. For example Bi2Te3,PbTe,CMO Bi2Te3- Bismuth Telluride PbTe-Led Telluride CMO- Calcium Manganese Oxide Bi2Te3 module TEG is high efficient in room temperature (50 c-200 c, 4.5%-6%) But heat withstanding capacity of Bi2Te3 is less than PbTe and CMO PbTe and CMO modules less efficient than Bi2Te3 So use combination of both material, Which means multistage Hot side Th area use PbTe and CMO modules after that less temperature area Tc use Bi2Te3 module TEG. REFERENECE [1]. P P Pradyumnan& Swathikrishnan, Indian journal of pure & Applied physics, Vol.48, February 2010,pp.115-120 [2]. Natkrita Prasoetsopha, Supree Pinitsoontorn, Vittaya Amornkitbamrung, Department of Physics, Faculty of Science, Khon Kaen University, Khon Kaen 40002, Thailand [3]. D. Flahaut, T. Mihara and R. Funahashi, N. Nabeshima, K. Lee, H. Ohta and K. Koumoto, JOURNAL OF APPLIED PHYSICS 100, 084911 (2006) [4]. Il-Ho Kim1, Soon-Mok Choi, Won-Seon Seo and Dong-Ik Cheong, Kim et al. Nanoscale Research Letters 2012, 7:2 [5]. Driss Kenfaui, Guillaume Bonnefont , Daniel Chateigner , Gilbert Fantozzi ,Moussa Gomina, Jacques Guillaume Noudem, Materials Research Bulletin 45 (2010) 1240–1249 [6]. Basel I. Ismail, Wael H. Ahmed, Recent Patents on Electrical Engineering 2009, 2, 27-39 R. Saidur , M.Rezaei , W.K.Muzammil , M.H.Hassan , S.Paria , M.Hasanuzzaman, Renewable and Sustainable Energy Reviews 16 (2012) 5649–5659 [7]. Nicolas Bailly, Jean-Marie Dilhac, Christophe Escriba, Claude Vanhecke, Nicolas Mauran1,Marise Bafleur, Author manuscript, published in "8th International Workshop on Micro and Nanotechnology for Power Generation and Energy Conversion Applications (PowerMEMS 2008), SENDAI : Japan (2008)" [8]. Ganni Gowtham, Ksitij Kumar, S.S Charan, K Manivannan, International journal of mechanical engineeringand technology (ijmet) ISSN 0976 – 6340 (Print) ISSN 0976 – 6359 (Online) Volume 3, Issue 3, September - December (2012), pp. 471-482 www.iosrjen.org 4 | P a g ePDF Image | Waste heat energy harvesting using thermo electric generator
PDF Search Title:
Waste heat energy harvesting using thermo electric generatorOriginal File Name Searched:
A03720104.pdfDIY PDF Search: Google It | Yahoo | Bing
