Text from PDF Page: 078

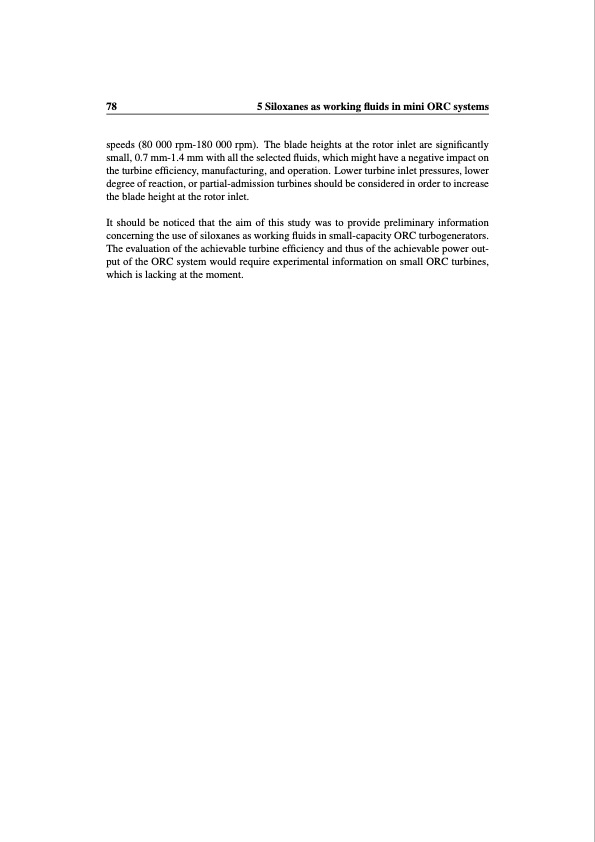

78 5 Siloxanes as working fluids in mini ORC systems speeds (80 000 rpm-180 000 rpm). The blade heights at the rotor inlet are significantly small, 0.7 mm-1.4 mm with all the selected fluids, which might have a negative impact on the turbine efficiency, manufacturing, and operation. Lower turbine inlet pressures, lower degree of reaction, or partial-admission turbines should be considered in order to increase the blade height at the rotor inlet. It should be noticed that the aim of this study was to provide preliminary information concerning the use of siloxanes as working fluids in small-capacity ORC turbogenerators. The evaluation of the achievable turbine efficiency and thus of the achievable power out- put of the ORC system would require experimental information on small ORC turbines, which is lacking at the moment.PDF Image | WORKING FLUID SELECTION AND DESIGN OF SMALL-SCALE WASTE HEAT RECOVERY SYSTEMS BASED ON ORGANIC RANKINE CYCLES
