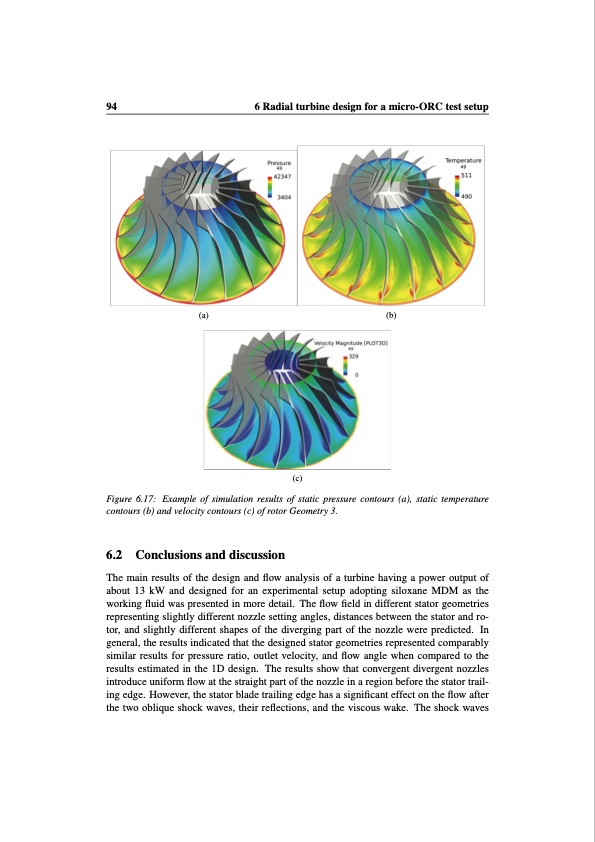

94 6 Radial turbine design for a micro-ORC test setup (a) (b) (c) Figure 6.17: Example of simulation results of static pressure contours (a), static temperature contours (b) and velocity contours (c) of rotor Geometry 3. 6.2 Conclusions and discussion The main results of the design and flow analysis of a turbine having a power output of about 13 kW and designed for an experimental setup adopting siloxane MDM as the working fluid was presented in more detail. The flow field in different stator geometries representing slightly different nozzle setting angles, distances between the stator and ro- tor, and slightly different shapes of the diverging part of the nozzle were predicted. In general, the results indicated that the designed stator geometries represented comparably similar results for pressure ratio, outlet velocity, and flow angle when compared to the results estimated in the 1D design. The results show that convergent divergent nozzles introduce uniform flow at the straight part of the nozzle in a region before the stator trail- ing edge. However, the stator blade trailing edge has a significant effect on the flow after the two oblique shock waves, their reflections, and the viscous wake. The shock wavesPDF Image | WORKING FLUID SELECTION AND DESIGN OF SMALL-SCALE WASTE HEAT RECOVERY SYSTEMS BASED ON ORGANIC RANKINE CYCLES
