Text from PDF Page: 107

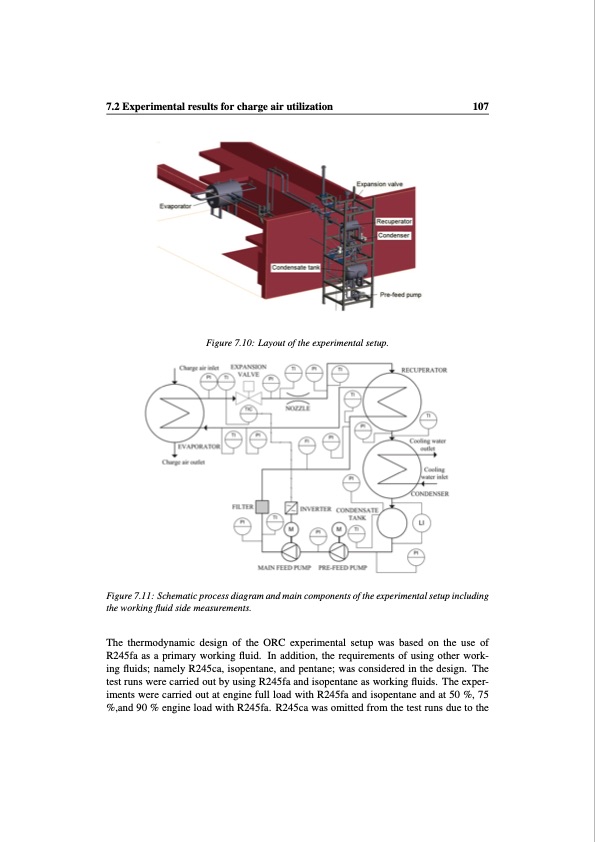

7.2 Experimental results for charge air utilization 107 Figure 7.10: Layout of the experimental setup. Figure 7.11: Schematic process diagram and main components of the experimental setup including the working fluid side measurements. The thermodynamic design of the ORC experimental setup was based on the use of R245fa as a primary working fluid. In addition, the requirements of using other work- ing fluids; namely R245ca, isopentane, and pentane; was considered in the design. The test runs were carried out by using R245fa and isopentane as working fluids. The exper- iments were carried out at engine full load with R245fa and isopentane and at 50 %, 75 %,and 90 % engine load with R245fa. R245ca was omitted from the test runs due to thePDF Image | WORKING FLUID SELECTION AND DESIGN OF SMALL-SCALE WASTE HEAT RECOVERY SYSTEMS BASED ON ORGANIC RANKINE CYCLES
PDF Search Title:
WORKING FLUID SELECTION AND DESIGN OF SMALL-SCALE WASTE HEAT RECOVERY SYSTEMS BASED ON ORGANIC RANKINE CYCLESOriginal File Name Searched:
Antti_Uusitalo_A_4_pdf_28_11__saa_painaa.pdfDIY PDF Search: Google It | Yahoo | Bing
