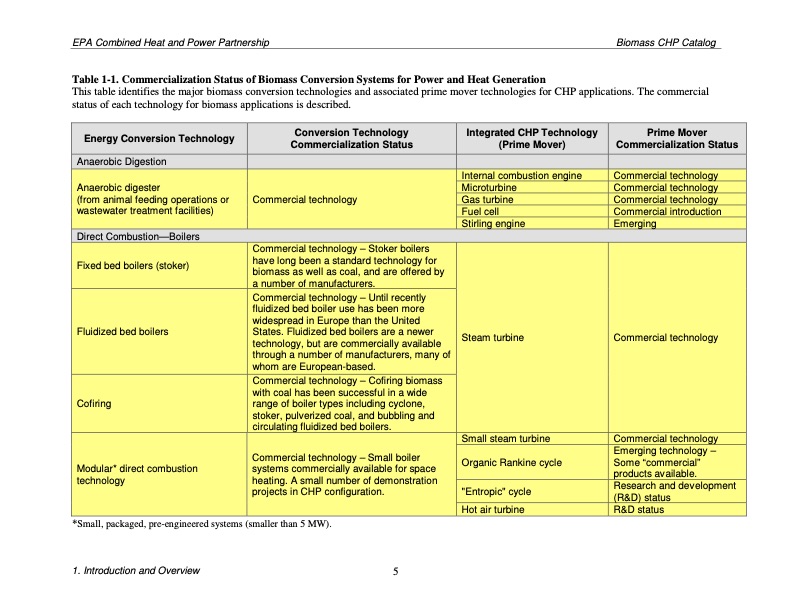

EPA Combined Heat and Power Partnership Biomass CHP Catalog Table 1-1. Commercialization Status of Biomass Conversion Systems for Power and Heat Generation This table identifies the major biomass conversion technologies and associated prime mover technologies for CHP applications. The commercial status of each technology for biomass applications is described. Energy Conversion Technology Conversion Technology Commercialization Status Integrated CHP Technology (Prime Mover) Prime Mover Commercialization Status Anaerobic Digestion Anaerobic digester (from animal feeding operations or wastewater treatment facilities) Commercial technology Internal combustion engine Microturbine Gas turbine Fuel cell Commercial technology Commercial technology Commercial technology Commercial introduction Emerging Direct Combustion—Boilers Fixed bed boilers (stoker) Commercial technology – Stoker boilers have long been a standard technology for biomass as well as coal, and are offered by a number of manufacturers. Fluidized bed boilers Commercial technology – Until recently fluidized bed boiler use has been more widespread in Europe than the United States. Fluidized bed boilers are a newer technology, but are commercially available through a number of manufacturers, many of whom are European-based. Steam turbine Commercial technology Cofiring Commercial technology – Cofiring biomass with coal has been successful in a wide range of boiler types including cyclone, stoker, pulverized coal, and bubbling and circulating fluidized bed boilers. Modular* direct combustion technology Commercial technology – Small boiler systems commercially available for space heating. A small number of demonstration projects in CHP configuration. Small steam turbine Organic Rankine cycle Commercial technology Emerging technology – Some “commercial” products available. Research and development (R&D) status *Small, packaged, pre-engineered systems (smaller than 5 MW). 1. Introduction and Overview 5 Stirling engine "Entropic" cycle Hot air turbine R&D statusPDF Image | Biomass Combined Heat and Power Catalog of Technologies
