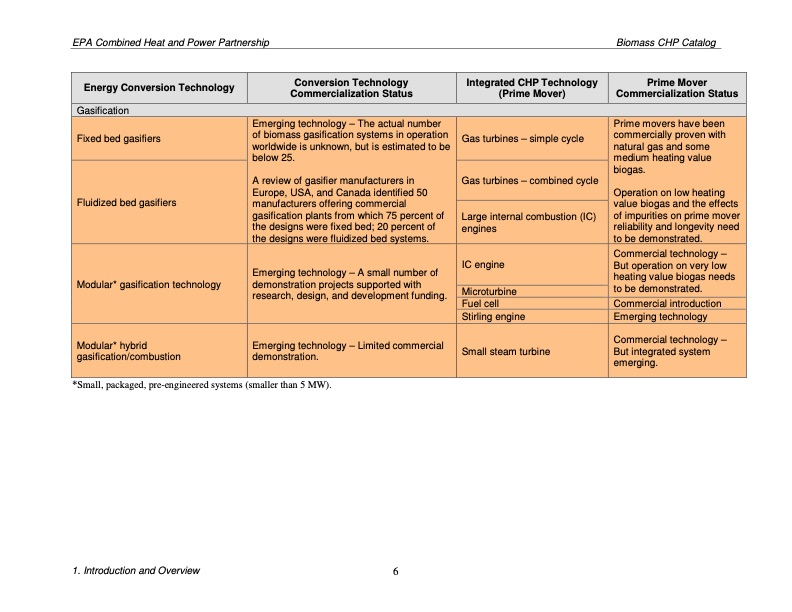

EPA Combined Heat and Power Partnership Biomass CHP Catalog Energy Conversion Technology Conversion Technology Commercialization Status Integrated CHP Technology (Prime Mover) Prime Mover Commercialization Status Gasification Fixed bed gasifiers Emerging technology – The actual number of biomass gasification systems in operation worldwide is unknown, but is estimated to be below 25. Gas turbines – simple cycle Prime movers have been commercially proven with natural gas and some medium heating value biogas. Fluidized bed gasifiers Operation on low heating value biogas and the effects of impurities on prime mover reliability and longevity need to be demonstrated. Modular* gasification technology Microturbine Fuel cell Stirling engine Modular* hybrid gasification/combustion Emerging technology – Limited commercial demonstration. Small steam turbine Commercial technology – But integrated system emerging. *Small, packaged, pre-engineered systems (smaller than 5 MW). 1. Introduction and Overview 6 A review of gasifier manufacturers in Europe, USA, and Canada identified 50 manufacturers offering commercial gasification plants from which 75 percent of the designs were fixed bed; 20 percent of the designs were fluidized bed systems. Gas turbines – combined cycle Emerging technology – A small number of demonstration projects supported with research, design, and development funding. IC engine Commercial technology – But operation on very low heating value biogas needs to be demonstrated. Large internal combustion (IC) engines Commercial introduction Emerging technologyPDF Image | Biomass Combined Heat and Power Catalog of Technologies
