Text from PDF Page: 040

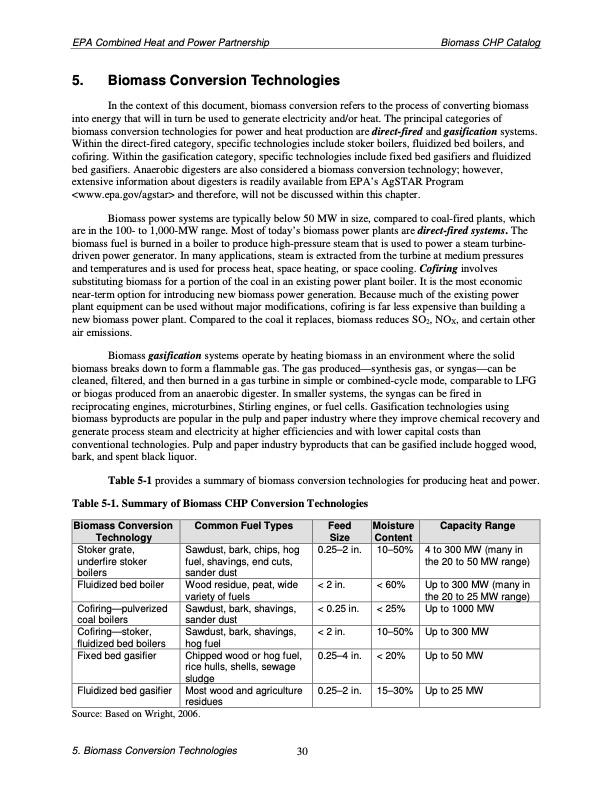

EPA Combined Heat and Power Partnership Biomass CHP Catalog 5. Biomass Conversion Technologies In the context of this document, biomass conversion refers to the process of converting biomass into energy that will in turn be used to generate electricity and/or heat. The principal categories of biomass conversion technologies for power and heat production are direct-fired and gasification systems. Within the direct-fired category, specific technologies include stoker boilers, fluidized bed boilers, and cofiring. Within the gasification category, specific technologies include fixed bed gasifiers and fluidized bed gasifiers. Anaerobic digesters are also considered a biomass conversion technology; however, extensive information about digesters is readily available from EP A’s AgST AR Program and therefore, will not be discussed within this chapter. Biomass power systems are typically below 50 MW in size, compared to coal-fired plants, which are in the 100- to 1,000-MW range. Most of today’s biomass power plants are direct-fired systems. The biomass fuel is burned in a boiler to produce high-pressure steam that is used to power a steam turbine- driven power generator. In many applications, steam is extracted from the turbine at medium pressures and temperatures and is used for process heat, space heating, or space cooling. Cofiring involves substituting biomass for a portion of the coal in an existing power plant boiler. It is the most economic near-term option for introducing new biomass power generation. Because much of the existing power plant equipment can be used without major modifications, cofiring is far less expensive than building a new biomass power plant. Compared to the coal it replaces, biomass reduces SO2, NOX, and certain other air emissions. Biomass gasification systems operate by heating biomass in an environment where the solid biomass breaks down to form a flammable gas. The gas produced—synthesis gas, or syngas—can be cleaned, filtered, and then burned in a gas turbine in simple or combined-cycle mode, comparable to LFG or biogas produced from an anaerobic digester. In smaller systems, the syngas can be fired in reciprocating engines, microturbines, Stirling engines, or fuel cells. Gasification technologies using biomass byproducts are popular in the pulp and paper industry where they improve chemical recovery and generate process steam and electricity at higher efficiencies and with lower capital costs than conventional technologies. Pulp and paper industry byproducts that can be gasified include hogged wood, bark, and spent black liquor. Table 5-1 provides a summary of biomass conversion technologies for producing heat and power. Table 5-1. Summary of Biomass CHP Conversion Technologies Biomass Conversion T echnology Common Fuel Types Feed Size Moisture Content Capacity Range Stoker grate, underfire stoker boilers Fluidized bed boiler Cofiring—pulverized coal boilers Cofiring—stoker, fluidized bed boilers Fixed bed gasifier Fluidized bed gasifier Sawdust, bark, chips, hog fuel, shavings, end cuts, sander dust Wood residue, peat, wide variety of fuels Sawdust, bark, shavings, sander dust Sawdust, bark, shavings, hog fuel Chipped wood or hog fuel, rice hulls, shells, sewage sludge Most wood and agriculture residues 0.25–2 in. <2in. < 0.25 in. <2in. 0.25–4 in. 0.25–2 in. 10–50% < 60% < 25% 10–50% < 20% 15–30% 4 to 300 MW (many in the 20 to 50 MW range) Up to 300 MW (many in the 20 to 25 MW range) Up to 1000 MW Up to 300 MW Up to 50 MW Up to 25 MW Source: Based on Wright, 2006. 5. Biomass Conversion Technologies 30

PDF Image | Biomass Combined Heat and Power Catalog of Technologies

biomass-combined-heat-and-power-catalog-technologies-040
