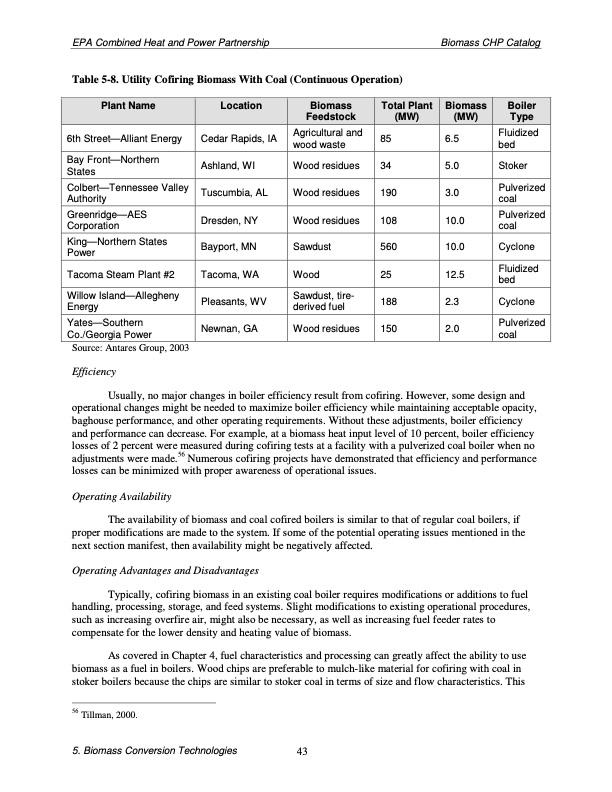

EPA Combined Heat and Power Partnership Biomass CHP Catalog Table 5-8. Utility Cofiring Biomass With Coal (Continuous Operation) Plant Name Location Biomass Feedstock Total Plant (MW) Biomass (MW) Boiler Type 6th Street—Alliant Energy Bay Front—Northern States Colbert—Tennessee Valley Authority Greenridge—AES Corporation King—Northern States Power Tacoma Steam Plant #2 Willow Island—Allegheny Energy Yates—Southern Co./Georgia Power Source: Antares Group, 2003 Efficiency Cedar Rapids, IA Ashland, WI Tuscumbia, AL Dresden, NY Bayport, MN Tacoma, WA Pleasants, WV Newnan, GA Agricultural and 85 6.5 wood waste Wood residues 34 5.0 Wood residues 190 3.0 Wood residues 108 10.0 Sawdust 560 10.0 Wood 25 12.5 Sawdust, tire- 188 2.3 derived fuel Wood residues 150 2.0 Fluidized bed Stoker Pulverized coal Pulverized coal Cyclone Fluidized bed Cyclone Pulverized coal Usually, no major changes in boiler efficiency result from cofiring. However, some design and operational changes might be needed to maximize boiler efficiency while maintaining acceptable opacity, baghouse performance, and other operating requirements. Without these adjustments, boiler efficiency and performance can decrease. For example, at a biomass heat input level of 10 percent, boiler efficiency losses of 2 percent were measured during cofiring tests at a facility with a pulverized coal boiler when no adjustments were made.56 Numerous cofiring projects have demonstrated that efficiency and performance losses can be minimized with proper awareness of operational issues. Operating Availability The availability of biomass and coal cofired boilers is similar to that of regular coal boilers, if proper modifications are made to the system. If some of the potential operating issues mentioned in the next section manifest, then availability might be negatively affected. Operating Advantages and Disadvantages Typically, cofiring biomass in an existing coal boiler requires modifications or additions to fuel handling, processing, storage, and feed systems. Slight modifications to existing operational procedures, such as increasing overfire air, might also be necessary, as well as increasing fuel feeder rates to compensate for the lower density and heating value of biomass. As covered in Chapter 4, fuel characteristics and processing can greatly affect the ability to use biomass as a fuel in boilers. Wood chips are preferable to mulch-like material for cofiring with coal in stoker boilers because the chips are similar to stoker coal in terms of size and flow characteristics. This 56 Tillman, 2000. 5. Biomass Conversion Technologies 43PDF Image | Biomass Combined Heat and Power Catalog of Technologies
