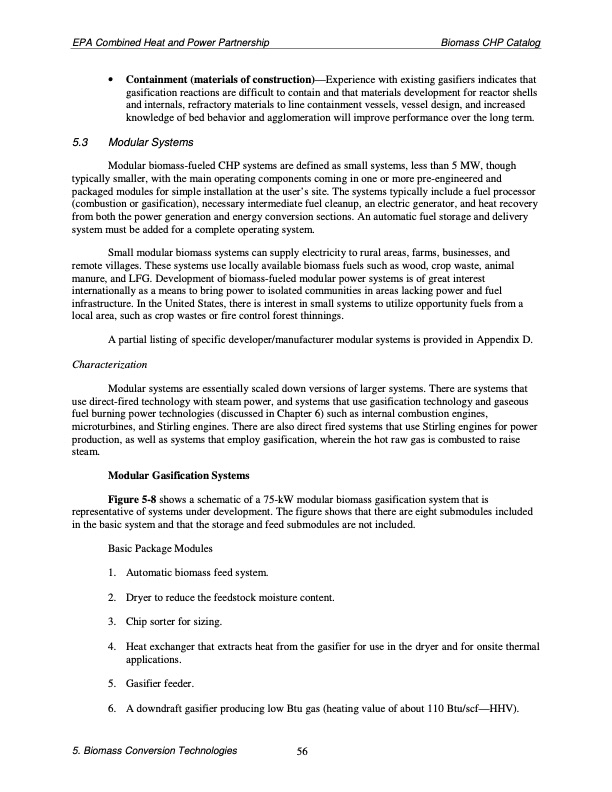

EPA Combined Heat and Power Partnership Biomass CHP Catalog • Containment (materials of construction)—Experience with existing gasifiers indicates that gasification reactions are difficult to contain and that materials development for reactor shells and internals, refractory materials to line containment vessels, vessel design, and increased knowledge of bed behavior and agglomeration will improve performance over the long term. 5.3 Modular Systems Modular biomass-fueled CHP systems are defined as small systems, less than 5 MW, though typically smaller, with the main operating components coming in one or more pre-engineered and packaged modules for simple installation at the user’s site. The systems typically include a fuel processor (combustion or gasification), necessary intermediate fuel cleanup, an electric generator, and heat recovery from both the power generation and energy conversion sections. An automatic fuel storage and delivery system must be added for a complete operating system. Small modular biomass systems can supply electricity to rural areas, farms, businesses, and remote villages. These systems use locally available biomass fuels such as wood, crop waste, animal manure, and LFG. Development of biomass-fueled modular power systems is of great interest internationally as a means to bring power to isolated communities in areas lacking power and fuel infrastructure. In the United States, there is interest in small systems to utilize opportunity fuels from a local area, such as crop wastes or fire control forest thinnings. A partial listing of specific developer/manufacturer modular systems is provided in Appendix D. Characterization Modular systems are essentially scaled down versions of larger systems. There are systems that use direct-fired technology with steam power, and systems that use gasification technology and gaseous fuel burning power technologies (discussed in Chapter 6) such as internal combustion engines, microturbines, and Stirling engines. There are also direct fired systems that use Stirling engines for power production, as well as systems that employ gasification, wherein the hot raw gas is combusted to raise steam. Modular Gasification Systems Figure 5-8 shows a schematic of a 75-kW modular biomass gasification system that is representative of systems under development. The figure shows that there are eight submodules included in the basic system and that the storage and feed submodules are not included. Basic Package Modules 1. Automatic biomass feed system. 2. Dryer to reduce the feedstock moisture content. 3. Chip sorter for sizing. 4. Heat exchanger that extracts heat from the gasifier for use in the dryer and for onsite thermal applications. 5. Gasifier feeder. 6. A downdraft gasifier producing low Btu gas (heating value of about 110 Btu/scf—HHV). 5. Biomass Conversion Technologies 56PDF Image | Biomass Combined Heat and Power Catalog of Technologies
