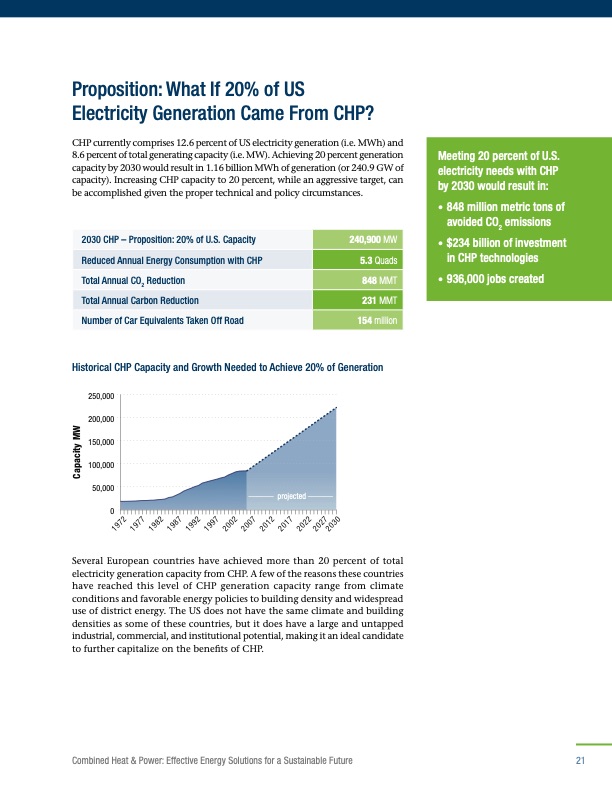

Proposition: What If 20% of US Electricity Generation Came From CHP? CHP currently comprises 12.6 percent of US electricity generation (i.e. MWh) and 8.6 percent of total generating capacity (i.e. MW). Achieving 20 percent generation capacity by 2030 would result in 1.16 billion MWh of generation (or 240.9 GW of capacity). Increasing CHP capacity to 20 percent, while an aggressive target, can be accomplished given the proper technical and policy circumstances. 2030 CHP – Proposition: 20% of U.S. Capacity 240,900 MW Reduced Annual Energy Consumption with CHP 5.3 Quads Total Annual CO2 Reduction 848 MMT Total Annual Carbon Reduction 231 MMT Number of Car Equivalents Taken Off Road 154 million Historical CHP Capacity and Growth Needed to Achieve 20% of Generation Several European countries have achieved more than 20 percent of total electricity generation capacity from CHP. A few of the reasons these countries have reached this level of CHP generation capacity range from climate conditions and favorable energy policies to building density and widespread use of district energy. The US does not have the same climate and building densities as some of these countries, but it does have a large and untapped industrial, commercial, and institutional potential, making it an ideal candidate to further capitalize on the benefits of CHP. 250,000 200,000 150,000 100,000 50,000 0 Combined Heat and Power Capacity ______ projected ______ Combined Heat & Power: Effective Energy Solutions for a Sustainable Future 21 Meeting 20 percent of U.S. electricity needs with CHP by 2030 would result in: • 848 million metric tons of avoided CO2 emissions • $234 billion of investment in CHP technologies • 936,000 jobs created Capacity MW 1972 1977 1982 1987 1992 1997 2002 2007 2012 2017 2022 2027 2030PDF Image | COMBINED HEAT AND POWER
