Text from PDF Page: 009

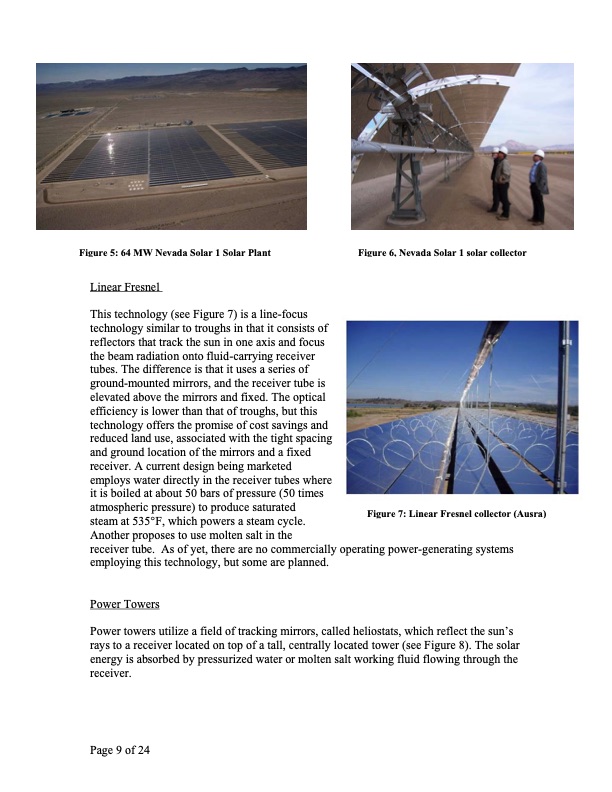

Figure 5: 64 MW Nevada Solar 1 Solar Plant Linear Fresnel This technology (see Figure 7) is a line-focus technology similar to troughs in that it consists of reflectors that track the sun in one axis and focus the beam radiation onto fluid-carrying receiver tubes. The difference is that it uses a series of ground-mounted mirrors, and the receiver tube is elevated above the mirrors and fixed. The optical efficiency is lower than that of troughs, but this technology offers the promise of cost savings and reduced land use, associated with the tight spacing and ground location of the mirrors and a fixed receiver. A current design being marketed employs water directly in the receiver tubes where it is boiled at about 50 bars of pressure (50 times atmospheric pressure) to produce saturated steam at 535°F, which powers a steam cycle. Another proposes to use molten salt in the receiver tube. As of yet, there are no commercially operating power-generating systems employing this technology, but some are planned. Power Towers Power towers utilize a field of tracking mirrors, called heliostats, which reflect the sun’s rays to a receiver located on top of a tall, centrally located tower (see Figure 8). The solar energy is absorbed by pressurized water or molten salt working fluid flowing through the receiver. Figure 6, Nevada Solar 1 solar collector Figure 7:, Linear Fresnel collector (Ausra) Page 9 of 24PDF Image | Concentrating Solar Power Commercial Application
