Text from PDF Page: 032

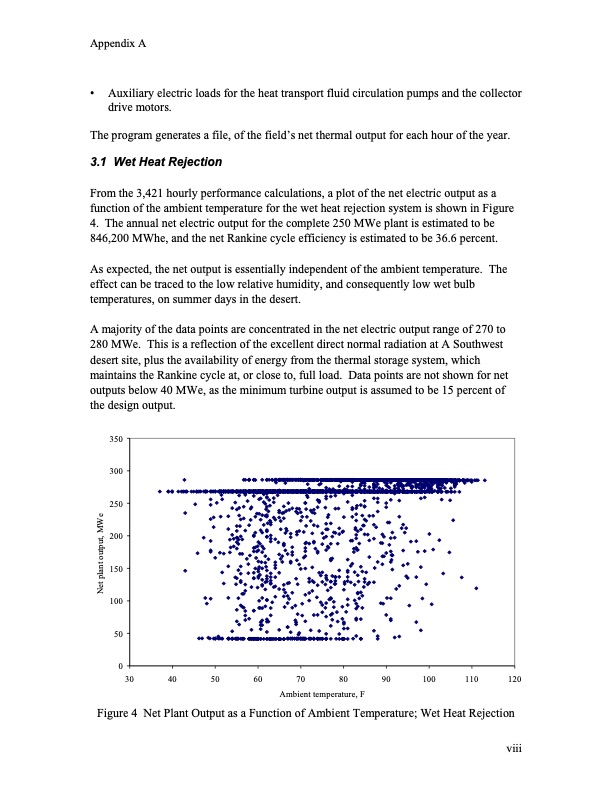

Appendix A • Auxiliary electric loads for the heat transport fluid circulation pumps and the collector drive motors. The program generates a file, of the field’s net thermal output for each hour of the year. 3.1 Wet Heat Rejection From the 3,421 hourly performance calculations, a plot of the net electric output as a function of the ambient temperature for the wet heat rejection system is shown in Figure 4. The annual net electric output for the complete 250 MWe plant is estimated to be 846,200 MWhe, and the net Rankine cycle efficiency is estimated to be 36.6 percent. As expected, the net output is essentially independent of the ambient temperature. The effect can be traced to the low relative humidity, and consequently low wet bulb temperatures, on summer days in the desert. A majority of the data points are concentrated in the net electric output range of 270 to 280 MWe. This is a reflection of the excellent direct normal radiation at A Southwest desert site, plus the availability of energy from the thermal storage system, which maintains the Rankine cycle at, or close to, full load. Data points are not shown for net outputs below 40 MWe, as the minimum turbine output is assumed to be 15 percent of the design output. 350 300 250 200 150 100 50 0 30 40 50 60 70 80 90 100 110 120 Ambient temperature, F Figure 4 Net Plant Output as a Function of Ambient Temperature; Wet Heat Rejection viii Net plant output, MWePDF Image | Concentrating Solar Power Commercial Application
