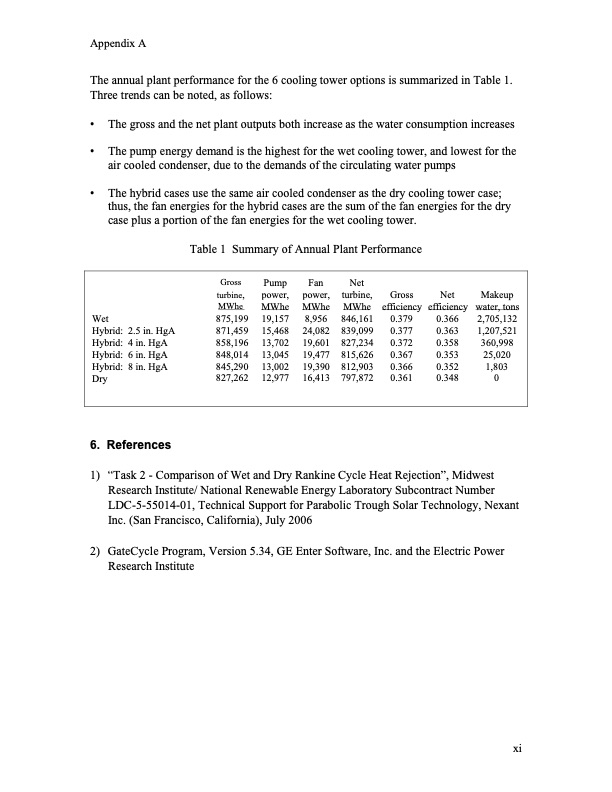

Appendix A The annual plant performance for the 6 cooling tower options is summarized in Table 1. Three trends can be noted, as follows: • The gross and the net plant outputs both increase as the water consumption increases • The pump energy demand is the highest for the wet cooling tower, and lowest for the air cooled condenser, due to the demands of the circulating water pumps • The hybrid cases use the same air cooled condenser as the dry cooling tower case; thus, the fan energies for the hybrid cases are the sum of the fan energies for the dry case plus a portion of the fan energies for the wet cooling tower. Table 1 Summary of Annual Plant Performance Gross Pump turbine, power, MWhe MWhe 875,199 19,157 871,459 15,468 858,196 13,702 848,014 13,045 845,290 13,002 827,262 12,977 Fan Net power, turbine, Gross Net Makeup MWhe MWhe efficiency efficiency water,tons Wet Hybrid: 2.5 in. HgA Hybrid: 4 in. HgA Hybrid: 6 in. HgA Hybrid: 8 in. HgA Dry 8,956 846,161 0.379 24,082 839,099 0.377 19,601 827,234 0.372 19,477 815,626 0.367 19,390 812,903 0.366 16,413 797,872 0.361 0.366 0.363 0.358 0.353 0.352 0.348 2,705,132 1,207,521 360,998 25,020 1,803 0 6. References 1) “Task 2 - Comparison of Wet and Dry Rankine Cycle Heat Rejection”, Midwest Research Institute/ National Renewable Energy Laboratory Subcontract Number LDC-5-55014-01, Technical Support for Parabolic Trough Solar Technology, Nexant Inc. (San Francisco, California), July 2006 2) GateCycle Program, Version 5.34, GE Enter Software, Inc. and the Electric Power Research Institute xiPDF Image | Concentrating Solar Power Commercial Application
