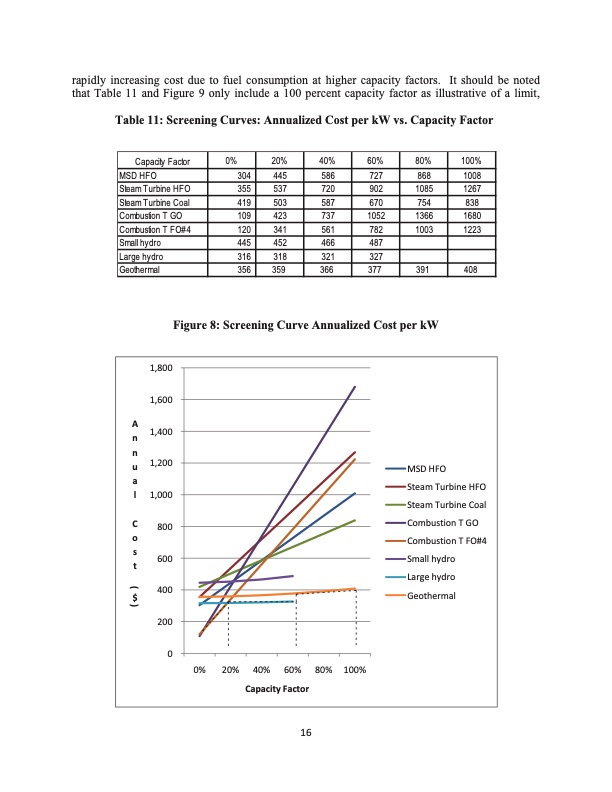

rapidly increasing cost due to fuel consumption at higher capacity factors. It should be noted that Table 11 and Figure 9 only include a 100 percent capacity factor as illustrative of a limit, which in practice cannot be realized. Table 11: Screening Curves: Annualized Cost per kW vs. Capacity Factor Capacity Factor 0% 20% 40% 60% 80% 100% MSD HFO 304 445 586 727 868 1008 Steam Turbine HFO 355 537 720 902 1085 1267 Steam Turbine Coal 419 503 587 670 754 838 Combustion T GO 109 423 737 1052 1366 1680 Combustion T FO#4 120 341 561 782 1003 1223 Small hydro 445 452 466 487 Large hydro 316 318 321 327 Geothermal 356 359 366 377 391 408 Figure 8: Screening Curve Annualized Cost per kW 1,800 1,600 A n n u a l 1,000 C 800 o s t $ 1,400 1,200 MSD HFO Steam Turbine HFO Steam Turbine Coal Combustion T GO Combustion T FO#4 Small hydro Large hydro Geothermal 600 400 200 0 0% 20% 40% 60% 80% 100% Capacity Factor 16 ()PDF Image | Drilling Down on Geothermal Potential Central America
