Text from PDF Page: 077

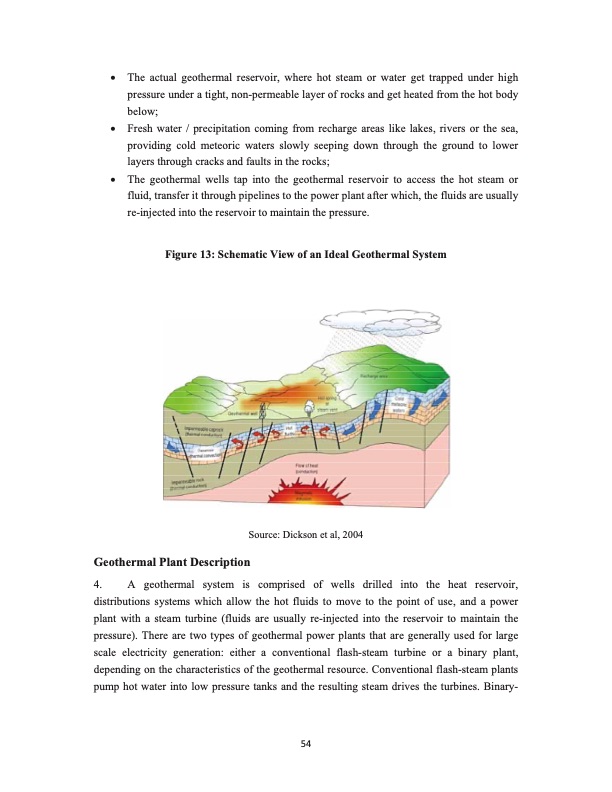

x The actual geothermal reservoir, where hot steam or water get trapped under high pressure under a tight, non-permeable layer of rocks and get heated from the hot body below; x Fresh water / precipitation coming from recharge areas like lakes, rivers or the sea, providing cold meteoric waters slowly seeping down through the ground to lower layers through cracks and faults in the rocks; x The geothermal wells tap into the geothermal reservoir to access the hot steam or fluid, transfer it through pipelines to the power plant after which, the fluids are usually re-injected into the reservoir to maintain the pressure. Figure 13: Schematic View of an Ideal Geothermal System Source: Dickson et al, 2004 Geothermal Plant Description 4. A geothermal system is comprised of wells drilled into the heat reservoir, distributions systems which allow the hot fluids to move to the point of use, and a power plant with a steam turbine (fluids are usually re-injected into the reservoir to maintain the pressure). There are two types of geothermal power plants that are generally used for large scale electricity generation: either a conventional flash-steam turbine or a binary plant, depending on the characteristics of the geothermal resource. Conventional flash-steam plants pump hot water into low pressure tanks and the resulting steam drives the turbines. Binary- 54PDF Image | Drilling Down on Geothermal Potential Central America
