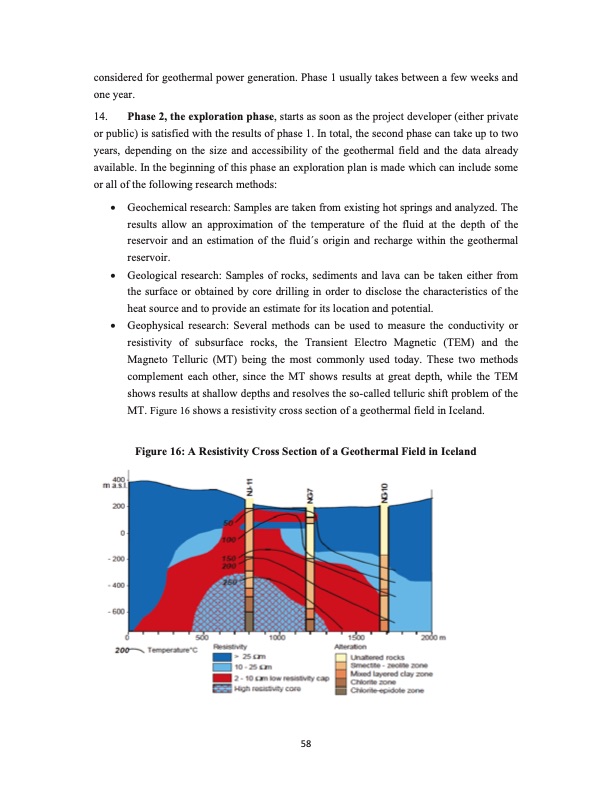

considered for geothermal power generation. Phase 1 usually takes between a few weeks and one year. 14. Phase 2, the exploration phase, starts as soon as the project developer (either private or public) is satisfied with the results of phase 1. In total, the second phase can take up to two years, depending on the size and accessibility of the geothermal field and the data already available. In the beginning of this phase an exploration plan is made which can include some or all of the following research methods: x Geochemical research: Samples are taken from existing hot springs and analyzed. The results allow an approximation of the temperature of the fluid at the depth of the reservoir and an estimation of the fluid ́s origin and recharge within the geothermal reservoir. x Geological research: Samples of rocks, sediments and lava can be taken either from the surface or obtained by core drilling in order to disclose the characteristics of the heat source and to provide an estimate for its location and potential. x Geophysical research: Several methods can be used to measure the conductivity or resistivity of subsurface rocks, the Transient Electro Magnetic (TEM) and the Magneto Telluric (MT) being the most commonly used today. These two methods complement each other, since the MT shows results at great depth, while the TEM shows results at shallow depths and resolves the so-called telluric shift problem of the MT. Figure 16 shows a resistivity cross section of a geothermal field in Iceland. Figure 16: A Resistivity Cross Section of a Geothermal Field in Iceland 58PDF Image | Drilling Down on Geothermal Potential Central America
