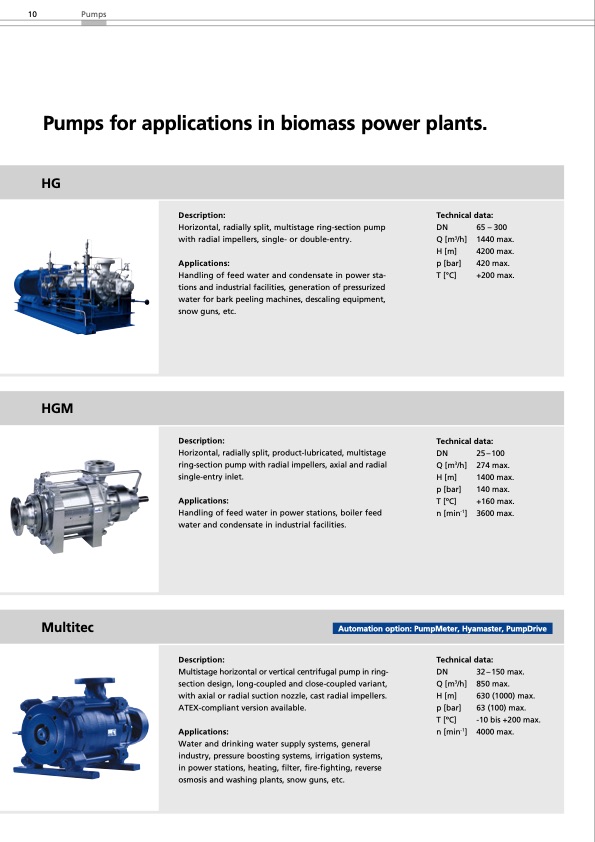

10 Pumps HG Description: Horizontal, radially split, multistage ring-section pump with radial impellers, single- or double-entry. Applications: Handling of feed water and condensate in power sta- tions and industrial facilities, generation of pressurized water for bark peeling machines, descaling equipment, snow guns, etc. Technical data: DN Q [m3/h] H [m] p [bar] T [°C] 65 – 300 1440 max. 4200 max. 420 max. +200 max. HGM Description: Horizontal, radially split, product-lubricated, multistage ring-section pump with radial impellers, axial and radial single-entry inlet. Applications: Handling of feed water in power stations, boiler feed water and condensate in industrial facilities. Technical data: DN Q [m3/h] H [m] p [bar] T [oC] n [min-1] 25–100 274 max. 1400 max. 140 max. +160 max. 3600 max. Multitec Automation option: PumpMeter, Hyamaster, PumpDrive Description: Multistage horizontal or vertical centrifugal pump in ring- section design, long-coupled and close-coupled variant, with axial or radial suction nozzle, cast radial impellers. ATEX-compliant version available. Applications: Water and drinking water supply systems, general industry, pressure boosting systems, irrigation systems, in power stations, heating, filter, fire-fighting, reverse osmosis and washing plants, snow guns, etc. Technical data: DN Q [m3/h] H [m] p [bar] T [oC] n [min-1] 32 – 150 max. 850 max. 630 (1000) max. 63 (100) max. -10 bis +200 max. 4000 max. Pumps for applications in biomass power plants.PDF Image | Energy. Natural. Endless. Solutions for Biomass Power Plants.
